Step1: Product
Infineon Technologies DDB2U60N12W1RFB11BPSA1

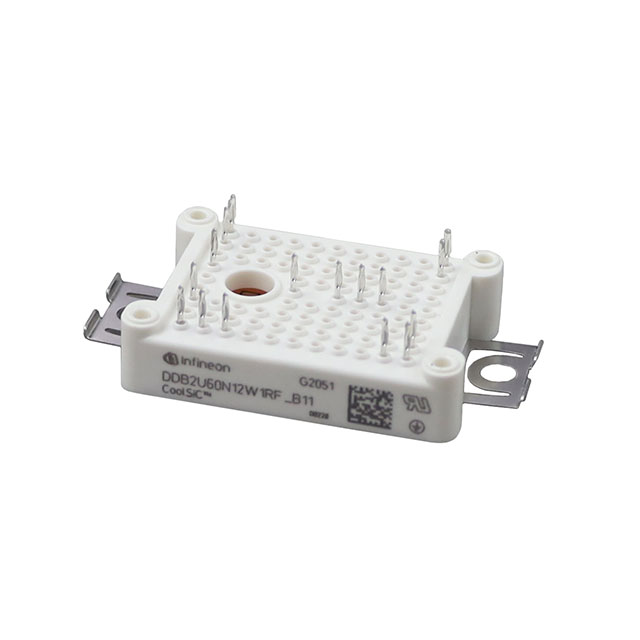

Image shown is a representation only
Manufacturer
Manufacturer No
DDB2U60N12W1RFB11BPSA1
Package
Module
Packaging
Tray
Description
BRIDGE RECT 1P 1.2KV 60A EASY1B1
Detailed Description
Bridge Rectifier Single Phase Silicon Carbide Schottky 1.2 kV Chassis Mount AG-EASY1B-1
DataSheet
Series
CoolSiC™
Packaging
Tray
Diode Type
Single Phase
Technology
Silicon Carbide Schottky
Part Status
Active
Manufacturer
Infineon Technologies
Mounting Type
Chassis Mount
Package / Case
Module
Base Product Number
DDB2U60N12
Operating Temperature
-40°C ~ 150°C (TJ)
Supplier Device Package
AG-EASY1B-1
Voltage - Peak Reverse (Max)
1.2 kV
Current - Reverse Leakage @ Vr
174 µA @ 1200 V
Current - Average Rectified (Io)
60 A
Voltage - Forward (Vf) (Max) @ If
1.85 V @ 60 A
| Attribute | Value |
|---|---|
| Series | CoolSiC™ |
| Packaging | Tray |
| Diode Type | Single Phase |
| Technology | Silicon Carbide Schottky |
| Part Status | Active |
| Manufacturer | Infineon Technologies |
| Mounting Type | Chassis Mount |
| Package / Case | Module |
| Base Product Number | DDB2U60N12 |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Supplier Device Package | AG-EASY1B-1 |
| Voltage - Peak Reverse (Max) | 1.2 kV |
| Current - Reverse Leakage @ Vr | 174 µA @ 1200 V |
| Current - Average Rectified (Io) | 60 A |
| Voltage - Forward (Vf) (Max) @ If | 1.85 V @ 60 A |
