Step1: Product
Infineon Technologies BGS14AN16E6327XTSA1

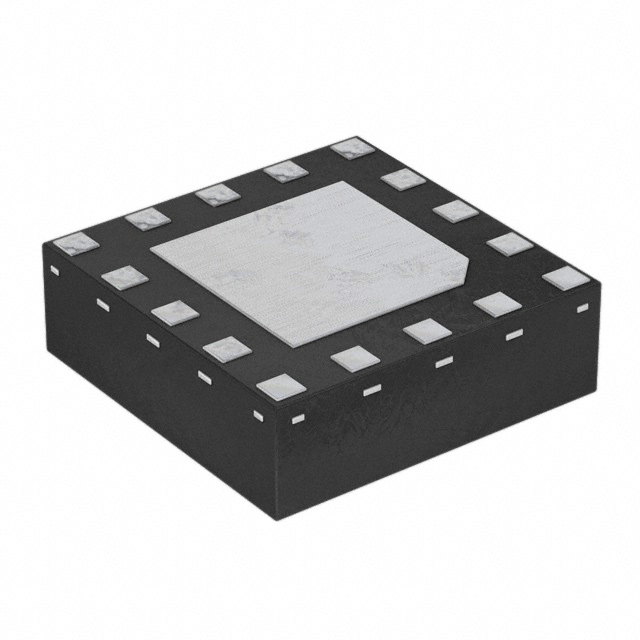

Image shown is a representation only
Manufacturer
Manufacturer No
BGS14AN16E6327XTSA1
Package
16-XFQFN Exposed Pad
Packaging
Tape & Reel (TR)
Description
IC RF SWITCH SP4T 3GHZ TSNP16-1
Detailed Description
RF Switch IC W-CDMA SP4T 3 GHz 50Ohm TSNP-16-1
Datasheet
Circuit
SP4T
RF Type
W-CDMA
Topology
Reflective
Impedance
50Ohm
Isolation
27dB
Packaging
Tape & Reel (TR)
Manufacturer
Infineon Technologies
Mounting Type
Surface Mount
Insertion Loss
0.69dB
Package / Case
16-XFQFN Exposed Pad
Test Frequency
2.69GHz
Frequency Range
100MHz ~ 3GHz
Voltage - Supply
2.85V ~ 4.7V
Base Product Number
BGS14
Operating Temperature
-30°C ~ 85°C
Supplier Device Package
TSNP-16-1
| Attribute | Value |
|---|---|
| Circuit | SP4T |
| RF Type | W-CDMA |
| Topology | Reflective |
| Impedance | 50Ohm |
| Isolation | 27dB |
| Packaging | Tape & Reel (TR) |
| Manufacturer | Infineon Technologies |
| Mounting Type | Surface Mount |
| Insertion Loss | 0.69dB |
| Package / Case | 16-XFQFN Exposed Pad |
| Test Frequency | 2.69GHz |
| Frequency Range | 100MHz ~ 3GHz |
| Voltage - Supply | 2.85V ~ 4.7V |
| Base Product Number | BGS14 |
| Operating Temperature | -30°C ~ 85°C |
| Supplier Device Package | TSNP-16-1 |
