Step1: Product
Infineon Technologies BAT1504WH2110XTSA1

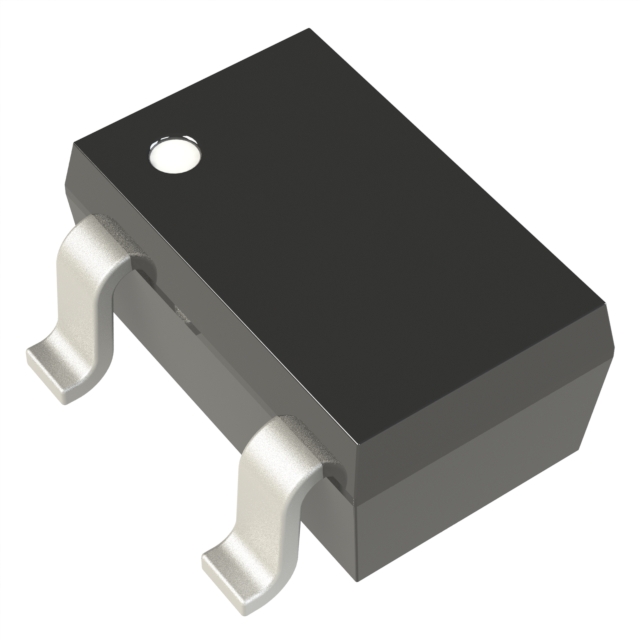

Image shown is a representation only
Manufacturer
Manufacturer No
BAT1504WH2110XTSA1
Package
SC-70, SOT-323
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
DIODE SCHOTTKY 4V 100MW SOT3233
Detailed Description
RF Diode Schottky - 1 Pair Series Connection 4V 110 mA 100 mW PG-SOT323-3
Datasheet
Packaging
Tape & Reel (TR); Cut Tape (CT)
Diode Type
Schottky - 1 Pair Series Connection
Manufacturer
Infineon Technologies
Current - Max
110 mA
Package / Case
SC-70, SOT-323
Resistance @ If, F
5.8Ohm @ 50mA, 1MHz
Base Product Number
BAT1504
Capacitance @ Vr, F
0.35pF @ 0V, 1MHz
Operating Temperature
150°C (TJ)
Power Dissipation (Max)
100 mW
Supplier Device Package
PG-SOT323-3
Voltage - Peak Reverse (Max)
4V
| Attribute | Value |
|---|---|
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Diode Type | Schottky - 1 Pair Series Connection |
| Manufacturer | Infineon Technologies |
| Current - Max | 110 mA |
| Package / Case | SC-70, SOT-323 |
| Resistance @ If, F | 5.8Ohm @ 50mA, 1MHz |
| Base Product Number | BAT1504 |
| Capacitance @ Vr, F | 0.35pF @ 0V, 1MHz |
| Operating Temperature | 150°C (TJ) |
| Power Dissipation (Max) | 100 mW |
| Supplier Device Package | PG-SOT323-3 |
| Voltage - Peak Reverse (Max) | 4V |
