Step1: Product

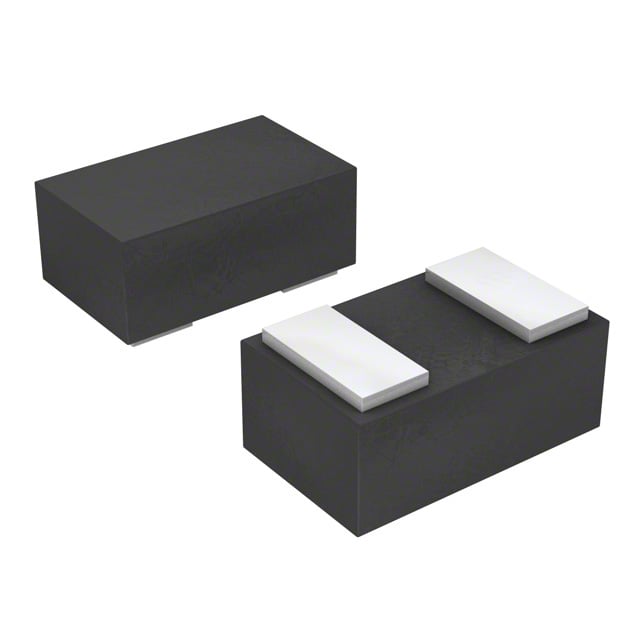

Infineon Technologies BAS3010S02LRHE6327XTSA1
Image shown is a representation only
Manufacturer
Manufacturer No
BAS3010S02LRHE6327XTSA1
Quantity
195
Availability
In Stock
Package
SOD-882
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
DIODE SCHOTTKY 30V 1A PGTSLP217
Detailed Description
Diode 30 V 1A Surface Mount PG-TSLP-2-17
DataSheet
Mfr
Infineon Technologies
Speed
Fast Recovery =< 500ns, > 200mA (Io)
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Technology
Schottky
Part Status
Active
Mounting Type
Surface Mount
Package / Case
SOD-882
Base Product Number
BAS3010
Capacitance @ Vr, F
15pF @ 5V, 1MHz
Supplier Device Package
PG-TSLP-2-17
Current - Reverse Leakage @ Vr
300 µA @ 30 V
Voltage - DC Reverse (Vr) (Max)
30 V
Current - Average Rectified (Io)
1A
Operating Temperature - Junction
-55°C ~ 150°C
Voltage - Forward (Vf) (Max) @ If
650 mV @ 1 A
| Attribute | Value |
|---|---|
| Mfr | Infineon Technologies |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Technology | Schottky |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | SOD-882 |
| Base Product Number | BAS3010 |
| Capacitance @ Vr, F | 15pF @ 5V, 1MHz |
| Supplier Device Package | PG-TSLP-2-17 |
| Current - Reverse Leakage @ Vr | 300 µA @ 30 V |
| Voltage - DC Reverse (Vr) (Max) | 30 V |
| Current - Average Rectified (Io) | 1A |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Voltage - Forward (Vf) (Max) @ If | 650 mV @ 1 A |
