Step1: Product

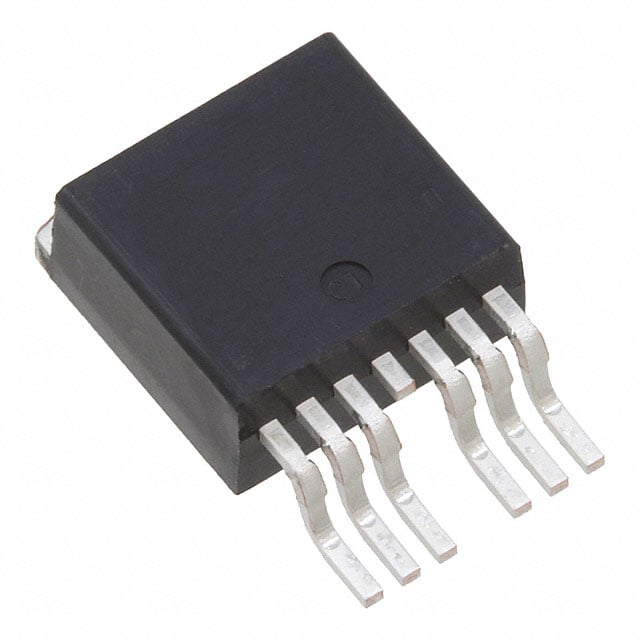

Infineon Technologies AUIRFS8409-7TRL
Image shown is a representation only
Manufacturer
Manufacturer No
AUIRFS8409-7TRL
Quantity
16
Availability
In Stock
Package
TO-263-7, D2PAK (6 Leads + Tab)
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
MOSFET N-CH 40V 240A D2PAK
Detailed Description
N-Channel 40 V 240A (Tc) 375W (Tc) Surface Mount D2PAK (7-Lead)
DataSheet
Mfr
Infineon Technologies
Grade
Automotive
Series
HEXFET®
FET Type
N-Channel
Packaging
Tape & Reel (TR); Cut Tape (CT)
Vgs (Max)
±20V
Technology
MOSFET (Metal Oxide)
Part Status
Obsolete
Mounting Type
Surface Mount
Qualification
AEC-Q101
Package / Case
TO-263-7, D2PAK (6 Leads + Tab)
Vgs(th) (Max) @ Id
3.9V @ 250µA
Base Product Number
AUIRF8409
Operating Temperature
-55°C ~ 175°C (TJ)
Rds On (Max) @ Id, Vgs
0.75mOhm @ 100A, 10V
Power Dissipation (Max)
375W (Tc)
Supplier Device Package
D2PAK (7-Lead)
Gate Charge (Qg) (Max) @ Vgs
460 nC @ 10 V
Drain to Source Voltage (Vdss)
40 V
Input Capacitance (Ciss) (Max) @ Vds
13975 pF @ 25 V
Drive Voltage (Max Rds On, Min Rds On)
10V
Current - Continuous Drain (Id) @ 25°C
240A (Tc)
| Attribute | Value |
|---|---|
| Mfr | Infineon Technologies |
| Grade | Automotive |
| Series | HEXFET® |
| FET Type | N-Channel |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Vgs (Max) | ±20V |
| Technology | MOSFET (Metal Oxide) |
| Part Status | Obsolete |
| Mounting Type | Surface Mount |
| Qualification | AEC-Q101 |
| Package / Case | TO-263-7, D2PAK (6 Leads + Tab) |
| Vgs(th) (Max) @ Id | 3.9V @ 250µA |
| Base Product Number | AUIRF8409 |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Rds On (Max) @ Id, Vgs | 0.75mOhm @ 100A, 10V |
| Power Dissipation (Max) | 375W (Tc) |
| Supplier Device Package | D2PAK (7-Lead) |
| Gate Charge (Qg) (Max) @ Vgs | 460 nC @ 10 V |
| Drain to Source Voltage (Vdss) | 40 V |
| Input Capacitance (Ciss) (Max) @ Vds | 13975 pF @ 25 V |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Current - Continuous Drain (Id) @ 25°C | 240A (Tc) |
