Step1: Product
I-PEX 20879-060E-01

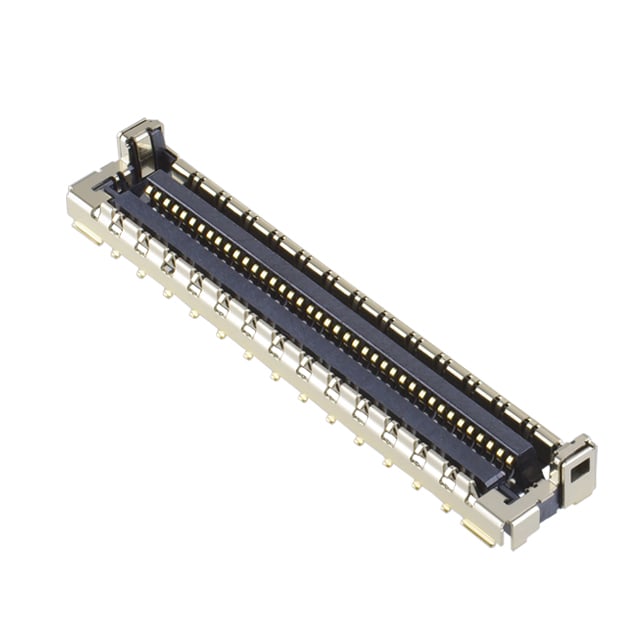

Image shown is a representation only
Manufacturer
Manufacturer No
20879-060E-01
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
CABLINE-UM RECEPTACLE 60P
Detailed Description
60 Position Receptacle Connector 0.016" (0.40mm) Surface Mount, Right Angle Gold
DataSheet
Mfr
I-PEX
Style
Board to Cable/Wire
Series
CABLINE®-UM
Features
Shielded, Solder Retention
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Termination
Solder
Applications
General Purpose, Telecommunications
Contact Type
Outer Shroud Contact
Contact Shape
Rectangular
Mounting Type
Surface Mount, Right Angle
Connector Type
Receptacle
Fastening Type
Latch Holder
Number of Rows
1
Pitch - Mating
0.016" (0.40mm)
Voltage Rating
100VAC
Contact Material
Corson Alloy
Insulation Color
Black
Insulation Height
0.060" (1.53mm)
Insulation Material
Liquid Crystal Polymer (LCP)
Number of Positions
60
Contact Finish - Post
Gold
Current Rating (Amps)
Varies by Wire Gauge
Operating Temperature
-40°C ~ 105°C
Contact Finish - Mating
Gold
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
1.25µin (0.032µm)
Contact Finish Thickness - Mating
1.18µin (0.030µm)
| Attribute | Value |
|---|---|
| Mfr | I-PEX |
| Style | Board to Cable/Wire |
| Series | CABLINE®-UM |
| Features | Shielded, Solder Retention |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Termination | Solder |
| Applications | General Purpose, Telecommunications |
| Contact Type | Outer Shroud Contact |
| Contact Shape | Rectangular |
| Mounting Type | Surface Mount, Right Angle |
| Connector Type | Receptacle |
| Fastening Type | Latch Holder |
| Number of Rows | 1 |
| Pitch - Mating | 0.016" (0.40mm) |
| Voltage Rating | 100VAC |
| Contact Material | Corson Alloy |
| Insulation Color | Black |
| Insulation Height | 0.060" (1.53mm) |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Number of Positions | 60 |
| Contact Finish - Post | Gold |
| Current Rating (Amps) | Varies by Wire Gauge |
| Operating Temperature | -40°C ~ 105°C |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 1.25µin (0.032µm) |
| Contact Finish Thickness - Mating | 1.18µin (0.030µm) |
