Step1: Product
Honeywell Sensing and Productivity Solutions ZM90G70A01

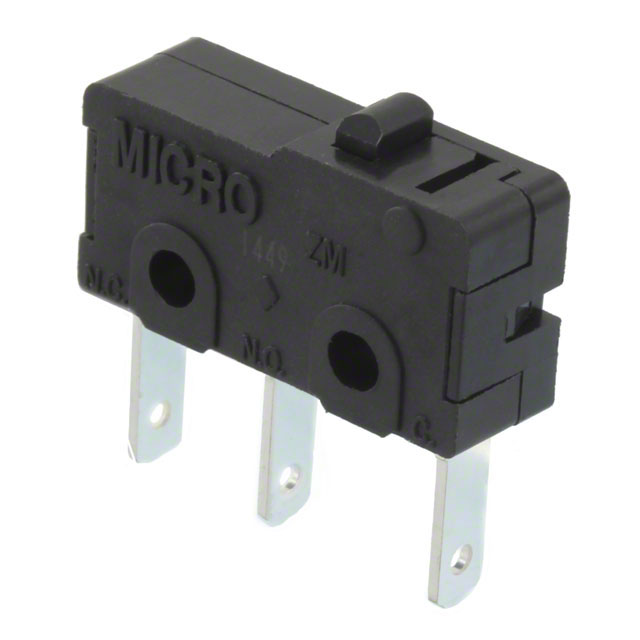

Image shown is a representation only
Manufacturer
Manufacturer No
ZM90G70A01
Packaging
Bulk
Description
SWITCH SNAP ACTION SPDT 10A 125V
Detailed Description
Switch SPDT Chassis Mount
DataSheet
Series
ZM
Circuit
SPDT
Packaging
Bulk
Pretravel
0.043" (1.1mm)
Overtravel
0.015" (0.4mm)
Part Status
Active
Manufacturer
Honeywell Sensing and Productivity Solutions
Actuator Type
Round (Pin Plunger)
Mounting Type
Chassis Mount
Release Force
50gf
Electrical Life
6,000 Cycles
Mechanical Life
10,000,000 Cycles
Operating Force
249gf
Switch Function
On-Mom
Termination Style
Quick Connect - 0.110" (2.8mm)
Operating Position
0.449" (11.4mm)
Base Product Number
ZM90G
Differential Travel
0.008" (0.2mm)
Voltage Rating - AC
125 V
Current Rating (Amps)
10A (AC)
Operating Temperature
-40°C ~ 120°C
| Attribute | Value |
|---|---|
| Series | ZM |
| Circuit | SPDT |
| Packaging | Bulk |
| Pretravel | 0.043" (1.1mm) |
| Overtravel | 0.015" (0.4mm) |
| Part Status | Active |
| Manufacturer | Honeywell Sensing and Productivity Solutions |
| Actuator Type | Round (Pin Plunger) |
| Mounting Type | Chassis Mount |
| Release Force | 50gf |
| Electrical Life | 6,000 Cycles |
| Mechanical Life | 10,000,000 Cycles |
| Operating Force | 249gf |
| Switch Function | On-Mom |
| Termination Style | Quick Connect - 0.110" (2.8mm) |
| Operating Position | 0.449" (11.4mm) |
| Base Product Number | ZM90G |
| Differential Travel | 0.008" (0.2mm) |
| Voltage Rating - AC | 125 V |
| Current Rating (Amps) | 10A (AC) |
| Operating Temperature | -40°C ~ 120°C |
