Step1: Product
Honeywell Sensing and Productivity Solutions ZM10E50F01

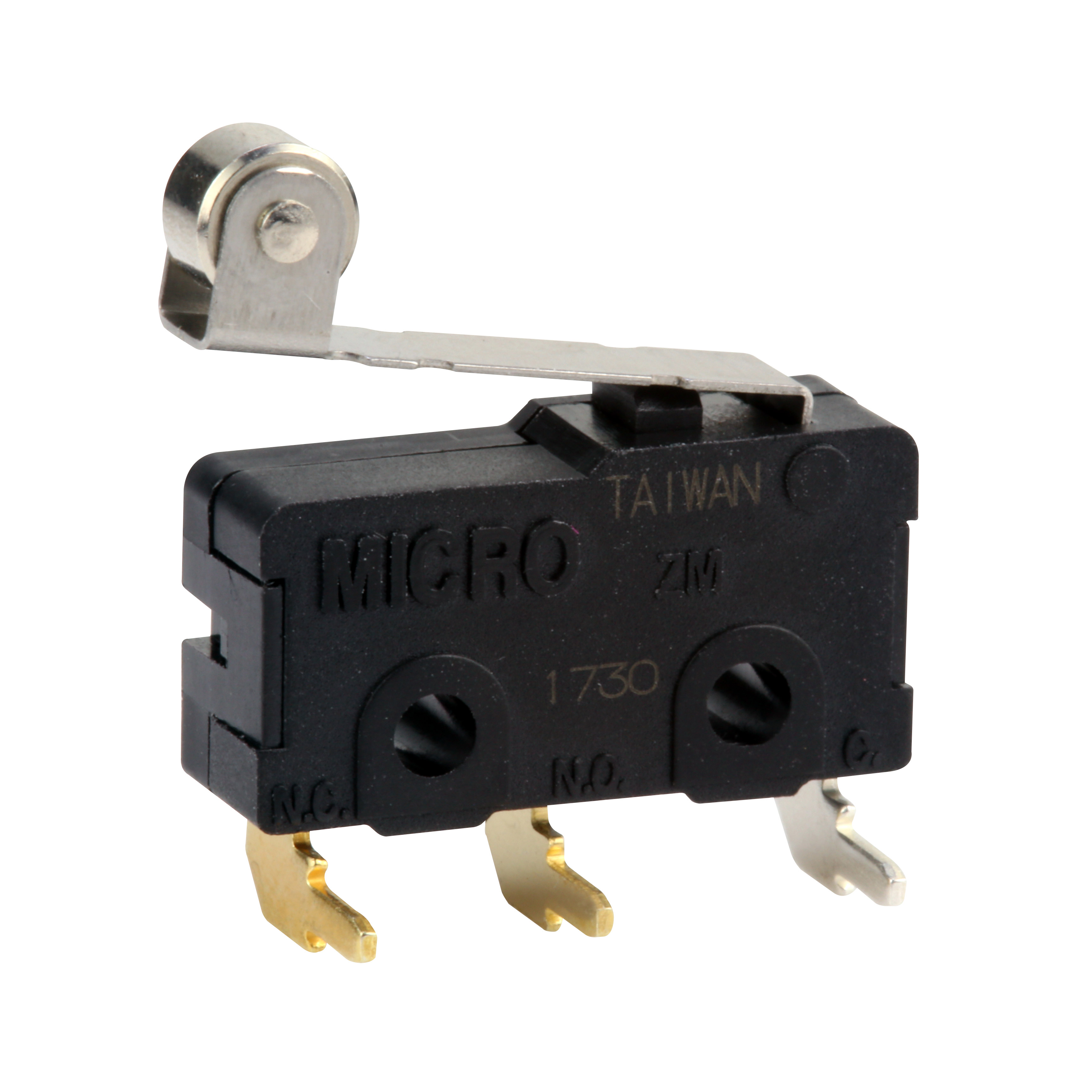

Image shown is a representation only
Manufacturer
Manufacturer No
ZM10E50F01
Packaging
Bulk
Description
SWITCH SNAP ACT SPDT 0.1A 125V
Detailed Description
Switch SPDT Through Hole, Right Angle
DataSheet
Series
ZM
Circuit
SPDT
Packaging
Bulk
Pretravel
0.150" (3.8mm)
Overtravel
0.030" (0.76mm)
Part Status
Active
Manufacturer
Honeywell Sensing and Productivity Solutions
Actuator Type
Lever, Roller
Mounting Type
Through Hole, Right Angle
Release Force
8.000gf
Electrical Life
10,000 Cycles
Mechanical Life
10,000,000 Cycles
Operating Force
35gf
Switch Function
On-Mom
Termination Style
PC Pin
Operating Position
0.689" (17.5mm)
Base Product Number
ZM10E
Differential Travel
0.030" (0.76mm)
Voltage Rating - AC
125 V
Voltage Rating - DC
30 V
Current Rating (Amps)
100mA (AC/DC)
Operating Temperature
-40°C ~ 120°C
| Attribute | Value |
|---|---|
| Series | ZM |
| Circuit | SPDT |
| Packaging | Bulk |
| Pretravel | 0.150" (3.8mm) |
| Overtravel | 0.030" (0.76mm) |
| Part Status | Active |
| Manufacturer | Honeywell Sensing and Productivity Solutions |
| Actuator Type | Lever, Roller |
| Mounting Type | Through Hole, Right Angle |
| Release Force | 8.000gf |
| Electrical Life | 10,000 Cycles |
| Mechanical Life | 10,000,000 Cycles |
| Operating Force | 35gf |
| Switch Function | On-Mom |
| Termination Style | PC Pin |
| Operating Position | 0.689" (17.5mm) |
| Base Product Number | ZM10E |
| Differential Travel | 0.030" (0.76mm) |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
| Current Rating (Amps) | 100mA (AC/DC) |
| Operating Temperature | -40°C ~ 120°C |
