Step1: Product
Honeywell Sensing and Productivity Solutions SCC05DD4

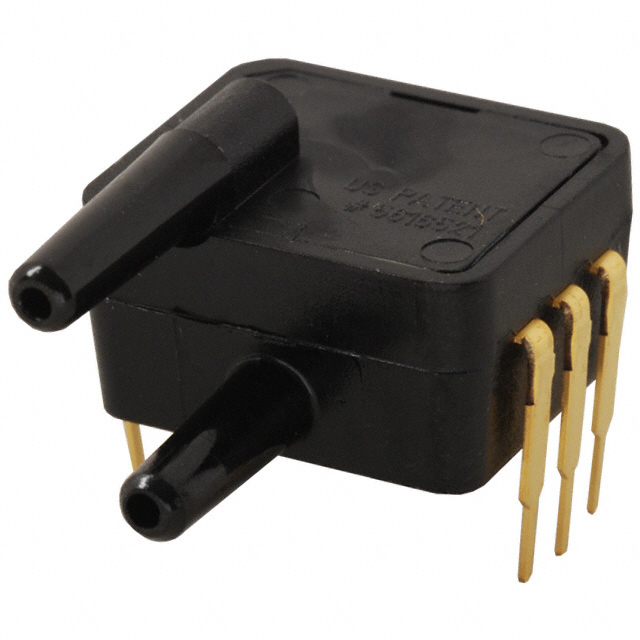

Image shown is a representation only
Manufacturer
Manufacturer No
SCC05DD4
Package
6-DIP Module
Packaging
Tray
Description
SENSOR 5PSID 0.09" .065V
Detailed Description
Pressure Sensor 5PSI (34.47kPa) Differential Male - 0.09" (2.29mm) Tube, Dual 25 mV ~ 65 mV 6-DIP Module
DataSheet
Output
25 mV ~ 65 mV
Series
SCC
Accuracy
±0.5%
Features
Temperature Compensated
Packaging
Tray
Port Size
Male - 0.09" (2.29mm) Tube, Dual
Port Style
Barbless
Output Type
Wheatstone Bridge
Part Status
Obsolete
Applications
Board Mount
Manufacturer
Honeywell Sensing and Productivity Solutions
Mounting Type
Through Hole
Pressure Type
Differential
Package / Case
6-DIP Module
Maximum Pressure
20PSI (137.9kPa)
Termination Style
PC Pin
Operating Pressure
5PSI (34.47kPa)
Operating Temperature
-40°C ~ 85°C
| Attribute | Value |
|---|---|
| Output | 25 mV ~ 65 mV |
| Series | SCC |
| Accuracy | ±0.5% |
| Features | Temperature Compensated |
| Packaging | Tray |
| Port Size | Male - 0.09" (2.29mm) Tube, Dual |
| Port Style | Barbless |
| Output Type | Wheatstone Bridge |
| Part Status | Obsolete |
| Applications | Board Mount |
| Manufacturer | Honeywell Sensing and Productivity Solutions |
| Mounting Type | Through Hole |
| Pressure Type | Differential |
| Package / Case | 6-DIP Module |
| Maximum Pressure | 20PSI (137.9kPa) |
| Termination Style | PC Pin |
| Operating Pressure | 5PSI (34.47kPa) |
| Operating Temperature | -40°C ~ 85°C |
