Step1: Product
Honeywell Sensing and Productivity Solutions 89165-01

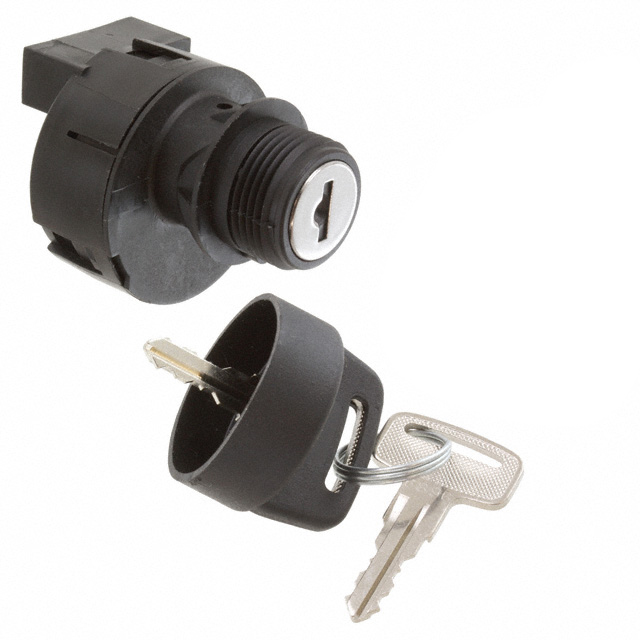

Image shown is a representation only
Manufacturer
Manufacturer No
89165-01
Packaging
Bulk
Description
SWITCH KEYLOCK 3POS SPDT 20A 12V
Detailed Description
Keylock Switch 3 Position SPDT 20A (DC) AC 12 VDC Panel Mount
Datasheet
Circuit
SPDT
Packaging
Bulk
Manufacturer
Honeywell Sensing and Productivity Solutions
Actuator Type
Flat Key
Mounting Type
Panel Mount
Angle of Throw
45°
Contact Finish
Tin
Contact Timing
Not Specified
Electrical Life
25,000 Cycles
Mechanical Life
25,000 Cycles
Switch Function
Off-On-Mom
Contact Material
Brass
Termination Style
Connector
Base Product Number
89165
Depth Behind Flange
43.43mm
Number of Positions
3
Voltage Rating - DC
12 V
Current Rating (Amps)
20A (DC)
Operating Temperature
-40°C ~ 85°C
Key Removable Positions
Left
Panel Cutout Dimensions
Circular - 22.35mm Dia
| Attribute | Value |
|---|---|
| Circuit | SPDT |
| Packaging | Bulk |
| Manufacturer | Honeywell Sensing and Productivity Solutions |
| Actuator Type | Flat Key |
| Mounting Type | Panel Mount |
| Angle of Throw | 45° |
| Contact Finish | Tin |
| Contact Timing | Not Specified |
| Electrical Life | 25,000 Cycles |
| Mechanical Life | 25,000 Cycles |
| Switch Function | Off-On-Mom |
| Contact Material | Brass |
| Termination Style | Connector |
| Base Product Number | 89165 |
| Depth Behind Flange | 43.43mm |
| Number of Positions | 3 |
| Voltage Rating - DC | 12 V |
| Current Rating (Amps) | 20A (DC) |
| Operating Temperature | -40°C ~ 85°C |
| Key Removable Positions | Left |
| Panel Cutout Dimensions | Circular - 22.35mm Dia |
