Step1: Product

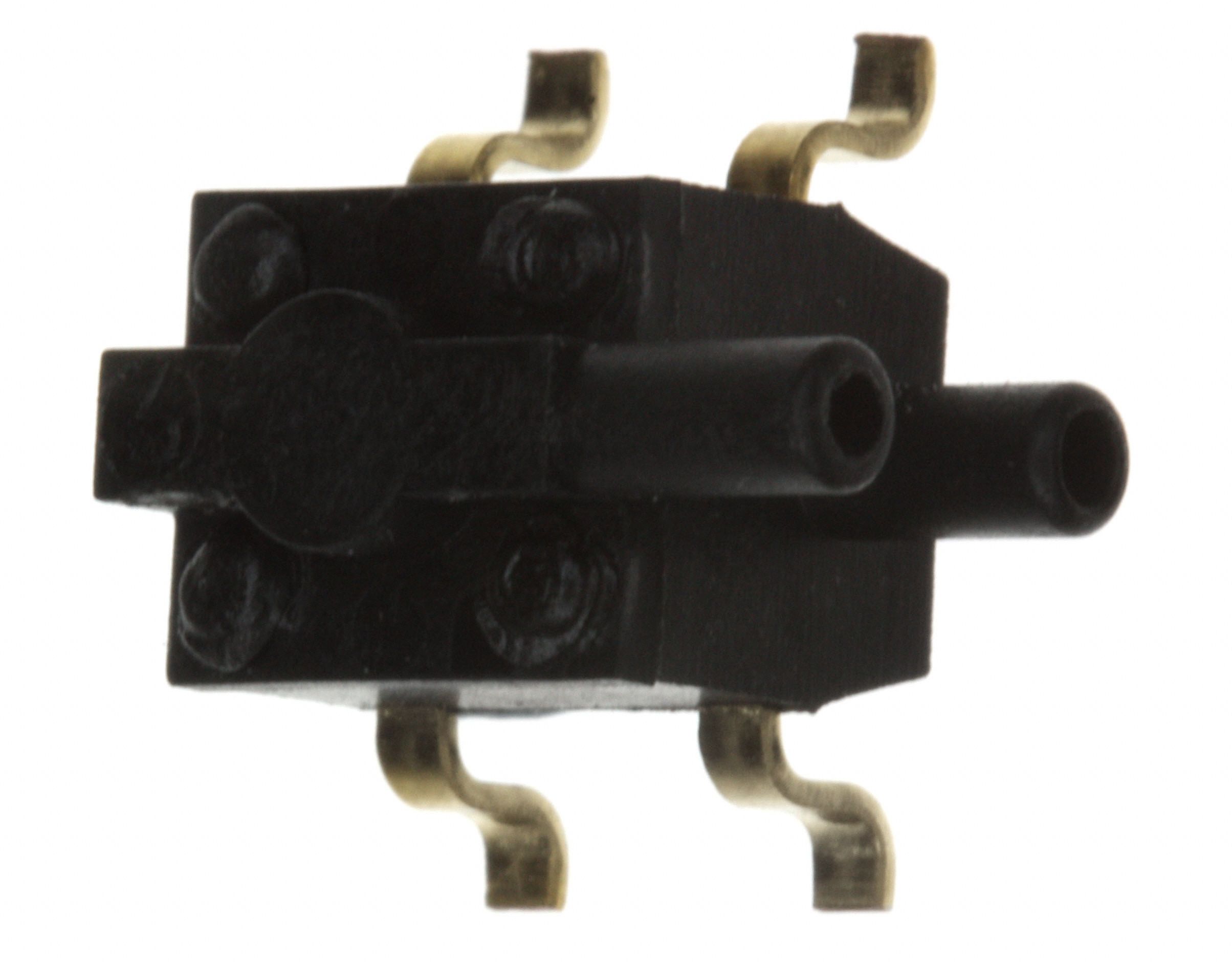

Honeywell Sensing and Productivity Solutions 26PC05SMT
Image shown is a representation only
Manufacturer
Manufacturer No
26PC05SMT
Package
4-SMD Module
Packaging
Tube
Description
SENSOR 5PSIC 0.07" .05V
Detailed Description
Pressure Sensor ±5PSI (±34.47kPa) Compound Male - 0.07" (1.88mm) Tube 0 mV ~ 50 mV (10V) 4-SMD Module
DataSheet
Output
0 mV ~ 50 mV (10V)
Series
26PC SMT
Accuracy
±1.5%
Features
Temperature Compensated
Packaging
Tube
Port Size
Male - 0.07" (1.88mm) Tube
Port Style
Barbless
Output Type
Wheatstone Bridge
Part Status
Active
Applications
Board Mount
Manufacturer
Honeywell Sensing and Productivity Solutions
Mounting Type
Surface Mount
Pressure Type
Compound
Package / Case
4-SMD Module
Maximum Pressure
±20PSI (±137.9kPa)
Voltage - Supply
2.5V ~ 16V
Termination Style
Gull Wing
Operating Pressure
±5PSI (±34.47kPa)
Base Product Number
26PC05
Operating Temperature
-40°C ~ 85°C
| Attribute | Value |
|---|---|
| Output | 0 mV ~ 50 mV (10V) |
| Series | 26PC SMT |
| Accuracy | ±1.5% |
| Features | Temperature Compensated |
| Packaging | Tube |
| Port Size | Male - 0.07" (1.88mm) Tube |
| Port Style | Barbless |
| Output Type | Wheatstone Bridge |
| Part Status | Active |
| Applications | Board Mount |
| Manufacturer | Honeywell Sensing and Productivity Solutions |
| Mounting Type | Surface Mount |
| Pressure Type | Compound |
| Package / Case | 4-SMD Module |
| Maximum Pressure | ±20PSI (±137.9kPa) |
| Voltage - Supply | 2.5V ~ 16V |
| Termination Style | Gull Wing |
| Operating Pressure | ±5PSI (±34.47kPa) |
| Base Product Number | 26PC05 |
| Operating Temperature | -40°C ~ 85°C |
