Step1: Product
Honeywell Sensing and Productivity Solutions 084830 02

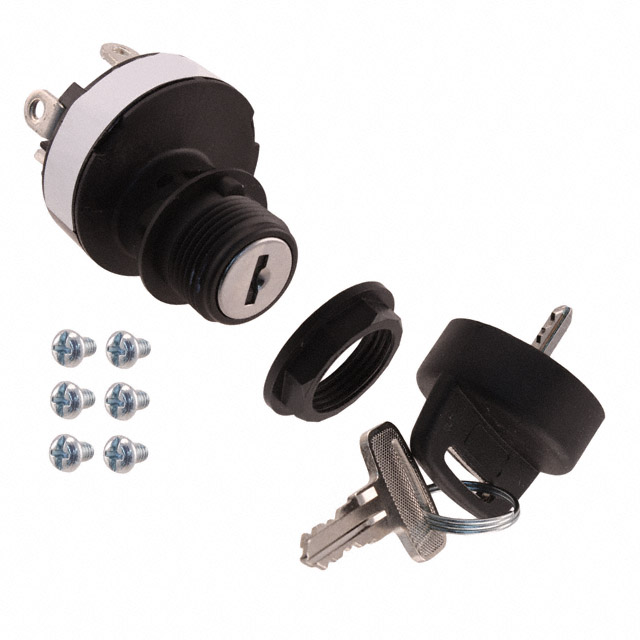

Image shown is a representation only
Manufacturer
Manufacturer No
084830 02
Description
SWITCH KEYLOCK 3POS DPDT 20A 12V
Detailed Description
Keylock Switch 3 Position DPDT 20A (DC) AC 12 VDC Panel Mount
Datasheet
Circuit
DPDT
Manufacturer
Honeywell Sensing and Productivity Solutions
Actuator Type
Flat Key
Mounting Type
Panel Mount
Angle of Throw
45°
Contact Timing
Not Specified
Electrical Life
25,000 Cycles
Mechanical Life
25,000 Cycles
Switch Function
On-Off-On
Contact Material
Copper
Termination Style
Screw Terminal
Depth Behind Flange
39.88mm
Number of Positions
3
Voltage Rating - DC
12 V
Current Rating (Amps)
20A (DC)
Operating Temperature
-40°C ~ 85°C
Key Removable Positions
2 only
Panel Cutout Dimensions
Circular - 22.35mm Dia
| Attribute | Value |
|---|---|
| Circuit | DPDT |
| Manufacturer | Honeywell Sensing and Productivity Solutions |
| Actuator Type | Flat Key |
| Mounting Type | Panel Mount |
| Angle of Throw | 45° |
| Contact Timing | Not Specified |
| Electrical Life | 25,000 Cycles |
| Mechanical Life | 25,000 Cycles |
| Switch Function | On-Off-On |
| Contact Material | Copper |
| Termination Style | Screw Terminal |
| Depth Behind Flange | 39.88mm |
| Number of Positions | 3 |
| Voltage Rating - DC | 12 V |
| Current Rating (Amps) | 20A (DC) |
| Operating Temperature | -40°C ~ 85°C |
| Key Removable Positions | 2 only |
| Panel Cutout Dimensions | Circular - 22.35mm Dia |
