Step1: Product

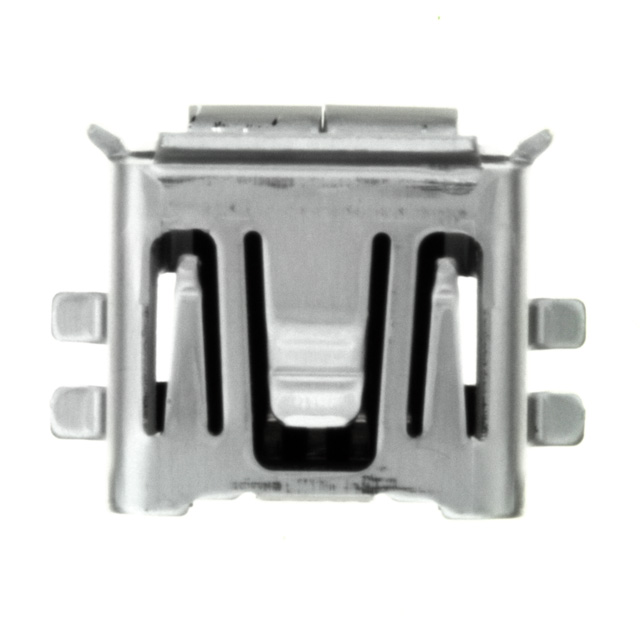

Hirose Electric Co Ltd UX60SA-MB-5ST
Image shown is a representation only
Manufacturer
Manufacturer No
UX60SA-MB-5ST
Packaging
Tape & Reel (TR)
Description
CONN RCPT USB2.0 MINI B SMD R/A
Detailed Description
USB - mini B USB 2.0 Receptacle Connector 5 Position Surface Mount, Right Angle
DataSheet
Gender
Receptacle
Series
UX
Features
Solder Retention
Packaging
Tape & Reel (TR)
Shielding
Shielded
Part Status
Obsolete
Termination
Solder
Manufacturer
Hirose Electric Co Ltd
Mating Cycles
5000
Mounting Type
Surface Mount, Right Angle
Connector Type
USB - mini B
Contact Finish
Gold
Specifications
USB 2.0
Number of Ports
1
Voltage - Rated
5VAC
Insulation Color
Black
Mounting Feature
Horizontal
Number of Contacts
5
Current Rating (Amps)
1A
Operating Temperature
-30°C ~ 75°C
Shell/Shielding Material
Phosphor Bronze
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Gender | Receptacle |
| Series | UX |
| Features | Solder Retention |
| Packaging | Tape & Reel (TR) |
| Shielding | Shielded |
| Part Status | Obsolete |
| Termination | Solder |
| Manufacturer | Hirose Electric Co Ltd |
| Mating Cycles | 5000 |
| Mounting Type | Surface Mount, Right Angle |
| Connector Type | USB - mini B |
| Contact Finish | Gold |
| Specifications | USB 2.0 |
| Number of Ports | 1 |
| Voltage - Rated | 5VAC |
| Insulation Color | Black |
| Mounting Feature | Horizontal |
| Number of Contacts | 5 |
| Current Rating (Amps) | 1A |
| Operating Temperature | -30°C ~ 75°C |
| Shell/Shielding Material | Phosphor Bronze |
| Material Flammability Rating | UL94 V-0 |
