Step1: Product
Hirose Electric Co Ltd MS-151NB-1

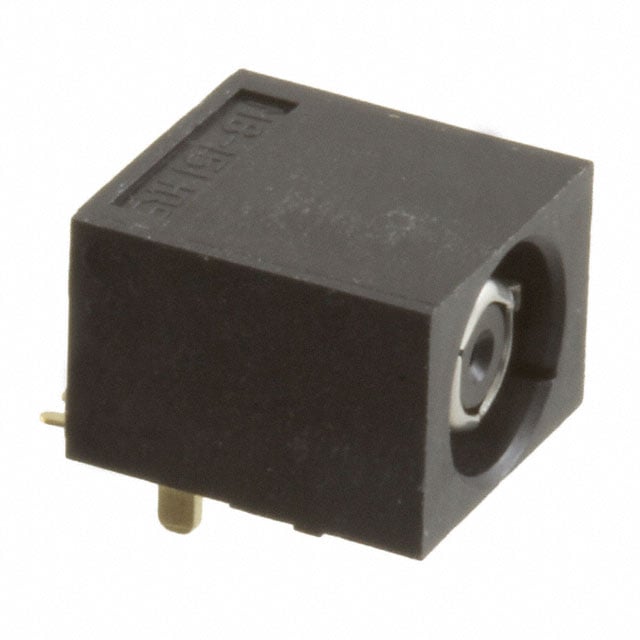

Image shown is a representation only
Manufacturer
Manufacturer No
MS-151NB-1
Quantity
136
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
CONN COAX SWITCH RCPT R/A 50OHM
Detailed Description
Coaxial Switch - 4.15mm Plug Dia Connector Receptacle, Female Socket 50 Ohms Surface Mount, Right Angle Solder
DataSheet
Mfr
Hirose Electric Co Ltd
Series
MS-151NB
Features
Internal Switch
Impedance
50 Ohms
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Body Finish
Gold
Part Status
Active
Body Material
Stainless Steel
Housing Color
Black
Mating Cycles
5000
Mounting Type
Surface Mount, Right Angle
Connector Type
Receptacle, Female Socket
Fastening Type
Snap-On
Insertion Loss
0.6dB
Connector Style
Coaxial Switch - 4.15mm Plug Dia
Frequency - Max
3 GHz
Number of Ports
1
Shield Termination
Solder
Base Product Number
MS-151
Contact Termination
Solder
Dielectric Material
Polyamide (PA), Nylon
Operating Temperature
-40°C ~ 85°C
Center Contact Plating
Gold
Center Contact Material
Phosphor Bronze
| Attribute | Value |
|---|---|
| Mfr | Hirose Electric Co Ltd |
| Series | MS-151NB |
| Features | Internal Switch |
| Impedance | 50 Ohms |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Body Finish | Gold |
| Part Status | Active |
| Body Material | Stainless Steel |
| Housing Color | Black |
| Mating Cycles | 5000 |
| Mounting Type | Surface Mount, Right Angle |
| Connector Type | Receptacle, Female Socket |
| Fastening Type | Snap-On |
| Insertion Loss | 0.6dB |
| Connector Style | Coaxial Switch - 4.15mm Plug Dia |
| Frequency - Max | 3 GHz |
| Number of Ports | 1 |
| Shield Termination | Solder |
| Base Product Number | MS-151 |
| Contact Termination | Solder |
| Dielectric Material | Polyamide (PA), Nylon |
| Operating Temperature | -40°C ~ 85°C |
| Center Contact Plating | Gold |
| Center Contact Material | Phosphor Bronze |
