Step1: Product

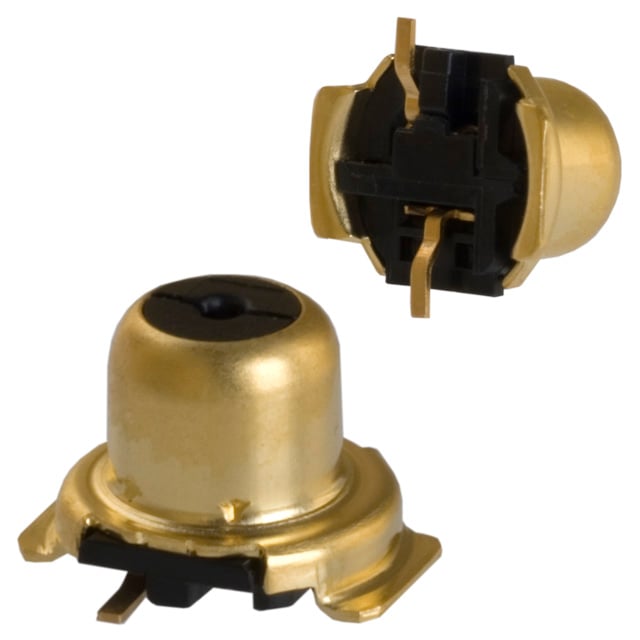

Hirose Electric Co Ltd MS-147(01)
Image shown is a representation only
Manufacturer
Manufacturer No
MS-147(01)
Packaging
Bag
Description
CONN COAX SWITCH RCPT STR 50OHM
Detailed Description
Coaxial Switch - 4.8mm Plug Dia Connector Receptacle, Female Socket 50 Ohms Surface Mount Solder
DataSheet
Mfr
Hirose Electric Co Ltd
Series
MS-147
Features
Internal Switch
Impedance
50 Ohms
Packaging
Bag
Body Finish
Gold
Part Status
Active
Body Material
Phosphor Bronze
Housing Color
Gold
Mating Cycles
12000
Mounting Type
Surface Mount
Connector Type
Receptacle, Female Socket
Fastening Type
Push-Pull
Insertion Loss
0.8dB
Connector Style
Coaxial Switch - 4.8mm Plug Dia
Frequency - Max
6 GHz
Number of Ports
1
Shield Termination
Solder
Base Product Number
MS-147
Contact Termination
Solder
Dielectric Material
Polyamide (PA), Nylon
Operating Temperature
-30°C ~ 85°C
Center Contact Plating
Gold
Center Contact Material
Beryllium Copper
| Attribute | Value |
|---|---|
| Mfr | Hirose Electric Co Ltd |
| Series | MS-147 |
| Features | Internal Switch |
| Impedance | 50 Ohms |
| Packaging | Bag |
| Body Finish | Gold |
| Part Status | Active |
| Body Material | Phosphor Bronze |
| Housing Color | Gold |
| Mating Cycles | 12000 |
| Mounting Type | Surface Mount |
| Connector Type | Receptacle, Female Socket |
| Fastening Type | Push-Pull |
| Insertion Loss | 0.8dB |
| Connector Style | Coaxial Switch - 4.8mm Plug Dia |
| Frequency - Max | 6 GHz |
| Number of Ports | 1 |
| Shield Termination | Solder |
| Base Product Number | MS-147 |
| Contact Termination | Solder |
| Dielectric Material | Polyamide (PA), Nylon |
| Operating Temperature | -30°C ~ 85°C |
| Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper |
