Step1: Product

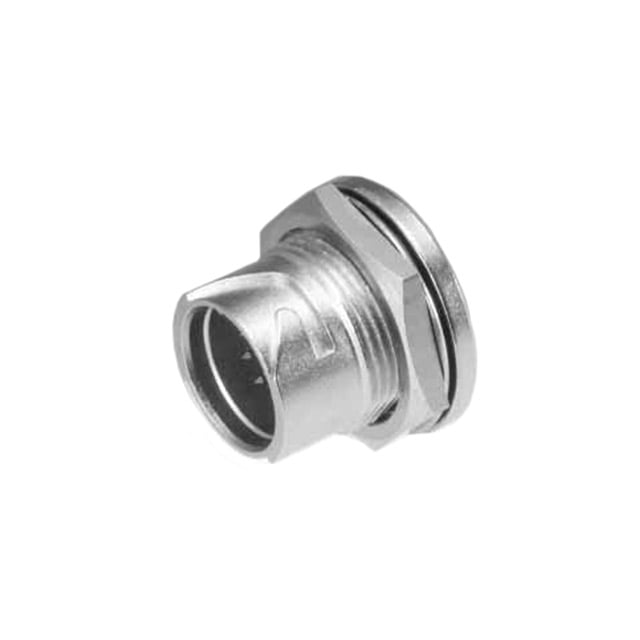

Hirose Electric Co Ltd LF10WBRB-12PD
Image shown is a representation only
Manufacturer
Manufacturer No
LF10WBRB-12PD
Quantity
10
Availability
In Stock
Packaging
Tray
Description
CONN RCPT MALE 12POS GOLD SOLDER
Detailed Description
12 Position Circular Connector Receptacle, Male Pins Solder
DataSheet
Mfr
Hirose Electric Co Ltd
Color
Silver
Series
LF
Packaging
Tray
Orientation
Keyed
Part Status
Active
Termination
Solder
Applications
Industrial, Telecommunications
Shell Finish
Nickel
Mounting Type
Panel Mount, Through Hole
Connector Type
Receptacle, Male Pins
Fastening Type
Bayonet Lock
Shell Material
Zinc Alloy
Voltage Rating
30VAC, 42VDC
Insert Material
Polyphenylene Sulfide (PPS)
Contact Material
Copper Alloy
Mounting Feature
Bulkhead - Front Side Nut
Primary Material
Metal
Ingress Protection
IP67/IP68 - Dust Tight, Waterproof
Base Product Number
LF10WBRB
Number of Positions
12
Shell Size - Insert
10
Current Rating (Amps)
2A
Operating Temperature
-25°C ~ 85°C
Contact Finish - Mating
Gold
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Mating
8.00µin (0.203µm)
| Attribute | Value |
|---|---|
| Mfr | Hirose Electric Co Ltd |
| Color | Silver |
| Series | LF |
| Packaging | Tray |
| Orientation | Keyed |
| Part Status | Active |
| Termination | Solder |
| Applications | Industrial, Telecommunications |
| Shell Finish | Nickel |
| Mounting Type | Panel Mount, Through Hole |
| Connector Type | Receptacle, Male Pins |
| Fastening Type | Bayonet Lock |
| Shell Material | Zinc Alloy |
| Voltage Rating | 30VAC, 42VDC |
| Insert Material | Polyphenylene Sulfide (PPS) |
| Contact Material | Copper Alloy |
| Mounting Feature | Bulkhead - Front Side Nut |
| Primary Material | Metal |
| Ingress Protection | IP67/IP68 - Dust Tight, Waterproof |
| Base Product Number | LF10WBRB |
| Number of Positions | 12 |
| Shell Size - Insert | 10 |
| Current Rating (Amps) | 2A |
| Operating Temperature | -25°C ~ 85°C |
| Contact Finish - Mating | Gold |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
