Step1: Product

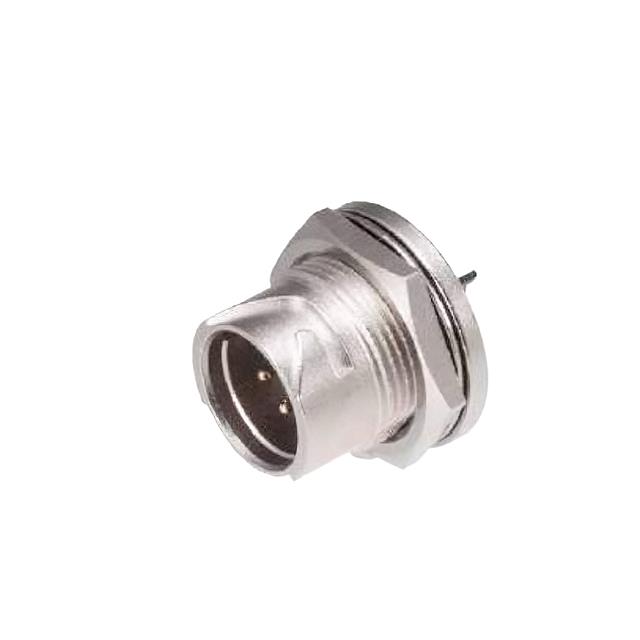

Hirose Electric Co Ltd LF07WBRB-6S
Image shown is a representation only
Manufacturer
Manufacturer No
LF07WBRB-6S
Packaging
Tray
Description
CONN RCPT FMALE 6POS SLDR CUP
Detailed Description
6 Position Circular Connector Receptacle, Female Sockets Solder Cup
DataSheet
Mfr
Hirose Electric Co Ltd
Color
Silver
Series
LF
Packaging
Tray
Shielding
Shielded
Orientation
Keyed
Part Status
Active
Termination
Solder Cup
Applications
Industrial, Telecommunications
Shell Finish
Nickel
Mounting Type
Panel Mount
Connector Type
Receptacle, Female Sockets
Fastening Type
Bayonet Lock
Shell Material
Zinc Alloy
Voltage Rating
30VAC, 42VDC
Insert Material
Polyphenylene Sulfide (PPS)
Contact Material
Copper Alloy
Mounting Feature
Bulkhead - Front Side Nut
Primary Material
Metal
Ingress Protection
IP67/IP68 - Dust Tight, Waterproof
Base Product Number
LF07WBRB
Number of Positions
6
Shell Size - Insert
7
Current Rating (Amps)
2A
Operating Temperature
-25°C ~ 85°C
Contact Finish - Mating
Gold
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Mfr | Hirose Electric Co Ltd |
| Color | Silver |
| Series | LF |
| Packaging | Tray |
| Shielding | Shielded |
| Orientation | Keyed |
| Part Status | Active |
| Termination | Solder Cup |
| Applications | Industrial, Telecommunications |
| Shell Finish | Nickel |
| Mounting Type | Panel Mount |
| Connector Type | Receptacle, Female Sockets |
| Fastening Type | Bayonet Lock |
| Shell Material | Zinc Alloy |
| Voltage Rating | 30VAC, 42VDC |
| Insert Material | Polyphenylene Sulfide (PPS) |
| Contact Material | Copper Alloy |
| Mounting Feature | Bulkhead - Front Side Nut |
| Primary Material | Metal |
| Ingress Protection | IP67/IP68 - Dust Tight, Waterproof |
| Base Product Number | LF07WBRB |
| Number of Positions | 6 |
| Shell Size - Insert | 7 |
| Current Rating (Amps) | 2A |
| Operating Temperature | -25°C ~ 85°C |
| Contact Finish - Mating | Gold |
| Material Flammability Rating | UL94 V-0 |
