Step1: Product

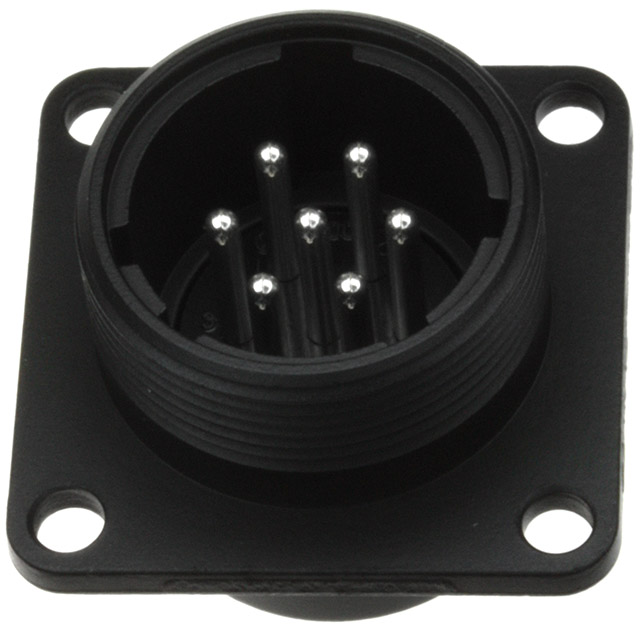

Hirose Electric Co Ltd JR16WR-7P(71)
Image shown is a representation only
Manufacturer
Manufacturer No
JR16WR-7P(71)
Packaging
Bag
Description
CONN RCPT MALE 7P SILV SLDR CUP
Detailed Description
7 Position Circular Connector Receptacle, Male Pins Solder Cup
DataSheet
Mfr
Hirose Electric Co Ltd
Color
Black
Series
JR-W
Packaging
Bag
Orientation
Keyed
Part Status
Obsolete
Termination
Solder Cup
Applications
Automotive, Industrial, Telecommunications
Shell Finish
Black Chromium
Cable Opening
0.783" (19.90mm)
Mounting Type
Panel Mount
Connector Type
Receptacle, Male Pins
Fastening Type
Threaded
Shell Material
Aluminum Alloy
Voltage Rating
100VAC, 140VDC
Insert Material
Phenol Formaldehyde (PF)
Contact Material
Copper Alloy
Mounting Feature
Flange
Primary Material
Metal
Ingress Protection
IP67/IP68 - Dust Tight, Waterproof
Base Product Number
JR16WR
Number of Positions
7
Shell Size - Insert
16
Current Rating (Amps)
10A
Operating Temperature
-25°C ~ 85°C
Contact Finish - Mating
Silver
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Mating
78.7µin (2.00µm)
| Attribute | Value |
|---|---|
| Mfr | Hirose Electric Co Ltd |
| Color | Black |
| Series | JR-W |
| Packaging | Bag |
| Orientation | Keyed |
| Part Status | Obsolete |
| Termination | Solder Cup |
| Applications | Automotive, Industrial, Telecommunications |
| Shell Finish | Black Chromium |
| Cable Opening | 0.783" (19.90mm) |
| Mounting Type | Panel Mount |
| Connector Type | Receptacle, Male Pins |
| Fastening Type | Threaded |
| Shell Material | Aluminum Alloy |
| Voltage Rating | 100VAC, 140VDC |
| Insert Material | Phenol Formaldehyde (PF) |
| Contact Material | Copper Alloy |
| Mounting Feature | Flange |
| Primary Material | Metal |
| Ingress Protection | IP67/IP68 - Dust Tight, Waterproof |
| Base Product Number | JR16WR |
| Number of Positions | 7 |
| Shell Size - Insert | 16 |
| Current Rating (Amps) | 10A |
| Operating Temperature | -25°C ~ 85°C |
| Contact Finish - Mating | Silver |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Mating | 78.7µin (2.00µm) |
