Step1: Product

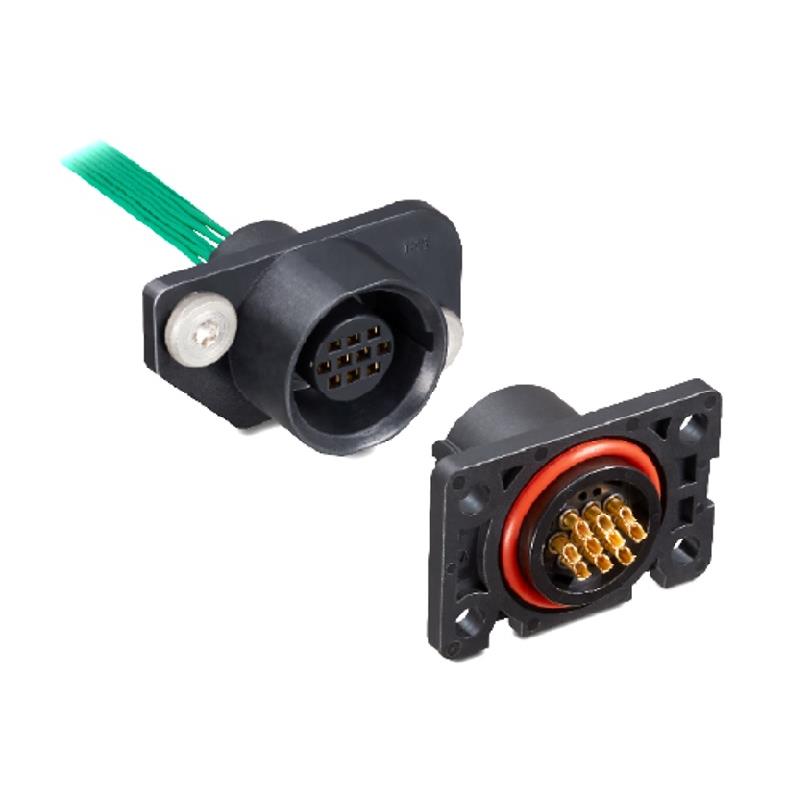

Hirose Electric Co Ltd HR34P-10WP-10SC
Image shown is a representation only
Manufacturer
Manufacturer No
HR34P-10WP-10SC
Packaging
Tray
Description
PLUG, 10POS., 3A, IPX7, IPX8, FR
Detailed Description
10 Position Circular Connector Receptacle, Male Pins Solder Cup
DataSheet
Mfr
Hirose Electric Co Ltd
Color
Black
Series
HR34P
Packaging
Tray
Shielding
Unshielded
Orientation
Keyed
Part Status
Active
Termination
Solder Cup
Mounting Type
Panel Mount
Connector Type
Receptacle, Male Pins
Fastening Type
Bayonet Lock
Shell Material
Polyamide (PA), Nylon
Voltage Rating
200VAC, 250VDC
Insert Material
Polyamide (PA), Nylon
Contact Material
Copper Alloy
Mounting Feature
Flange
Primary Material
Plastic
Ingress Protection
IP67/IP68 - Dust Tight, Waterproof
Number of Positions
10
Shell Size - Insert
10
Current Rating (Amps)
3A
Operating Temperature
-40°C ~ 105°C
Contact Finish - Mating
Gold
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Mating
7.87µin (0.200µm)
| Attribute | Value |
|---|---|
| Mfr | Hirose Electric Co Ltd |
| Color | Black |
| Series | HR34P |
| Packaging | Tray |
| Shielding | Unshielded |
| Orientation | Keyed |
| Part Status | Active |
| Termination | Solder Cup |
| Mounting Type | Panel Mount |
| Connector Type | Receptacle, Male Pins |
| Fastening Type | Bayonet Lock |
| Shell Material | Polyamide (PA), Nylon |
| Voltage Rating | 200VAC, 250VDC |
| Insert Material | Polyamide (PA), Nylon |
| Contact Material | Copper Alloy |
| Mounting Feature | Flange |
| Primary Material | Plastic |
| Ingress Protection | IP67/IP68 - Dust Tight, Waterproof |
| Number of Positions | 10 |
| Shell Size - Insert | 10 |
| Current Rating (Amps) | 3A |
| Operating Temperature | -40°C ~ 105°C |
| Contact Finish - Mating | Gold |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Mating | 7.87µin (0.200µm) |
