Step1: Product

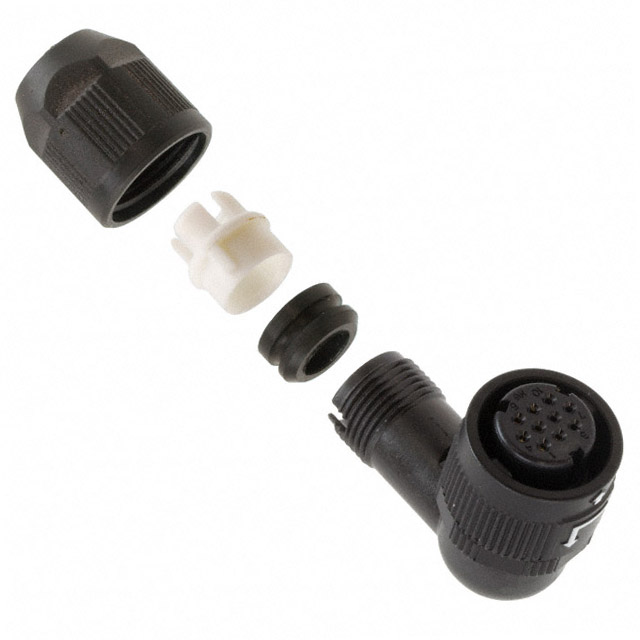

Hirose Electric Co Ltd HR34B-12WLPA-10S(71)
Image shown is a representation only
Manufacturer
Manufacturer No
HR34B-12WLPA-10S(71)
Packaging
Tray
Description
CONN PLUG FMALE 10P SOLDER CUP
Detailed Description
10 (Power) Position Circular Connector Plug, Female Sockets Solder Cup
DataSheet
Mfr
Hirose Electric Co Ltd
Color
Black
Series
HR34B
Features
Backshell, Coupling Nut, Rotatable, Strain Relief
Packaging
Tray
Shielding
Unshielded
Orientation
N (Normal)
Part Status
Obsolete
Termination
Solder Cup
Applications
Telecommunications
Shell Finish
Chrome
Cable Opening
0.224" ~ 0.256" (5.70mm ~ 6.50mm)
Mounting Type
Free Hanging (In-Line), Right Angle
Connector Type
Plug, Female Sockets
Fastening Type
Bayonet Lock
Shell Material
Zinc Alloy
Voltage Rating
200VAC, 250VDC
Insert Material
Polyphenylene Sulfide (PPS)
Contact Material
Phosphor Bronze
Primary Material
Metal
Ingress Protection
IP67F/IP68F - Dust Tight, Oil Resistant, Waterproof
Base Product Number
HR34B
Number of Positions
10 (Power)
Shell Size - Insert
12
Current Rating (Amps)
3A
Operating Temperature
-25°C ~ 125°C
Contact Finish - Mating
Gold
Backshell Material, Plating
Aluminum Alloy, Black Chromate
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Mating
8.00µin (0.203µm)
| Attribute | Value |
|---|---|
| Mfr | Hirose Electric Co Ltd |
| Color | Black |
| Series | HR34B |
| Features | Backshell, Coupling Nut, Rotatable, Strain Relief |
| Packaging | Tray |
| Shielding | Unshielded |
| Orientation | N (Normal) |
| Part Status | Obsolete |
| Termination | Solder Cup |
| Applications | Telecommunications |
| Shell Finish | Chrome |
| Cable Opening | 0.224" ~ 0.256" (5.70mm ~ 6.50mm) |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Connector Type | Plug, Female Sockets |
| Fastening Type | Bayonet Lock |
| Shell Material | Zinc Alloy |
| Voltage Rating | 200VAC, 250VDC |
| Insert Material | Polyphenylene Sulfide (PPS) |
| Contact Material | Phosphor Bronze |
| Primary Material | Metal |
| Ingress Protection | IP67F/IP68F - Dust Tight, Oil Resistant, Waterproof |
| Base Product Number | HR34B |
| Number of Positions | 10 (Power) |
| Shell Size - Insert | 12 |
| Current Rating (Amps) | 3A |
| Operating Temperature | -25°C ~ 125°C |
| Contact Finish - Mating | Gold |
| Backshell Material, Plating | Aluminum Alloy, Black Chromate |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
