Step1: Product

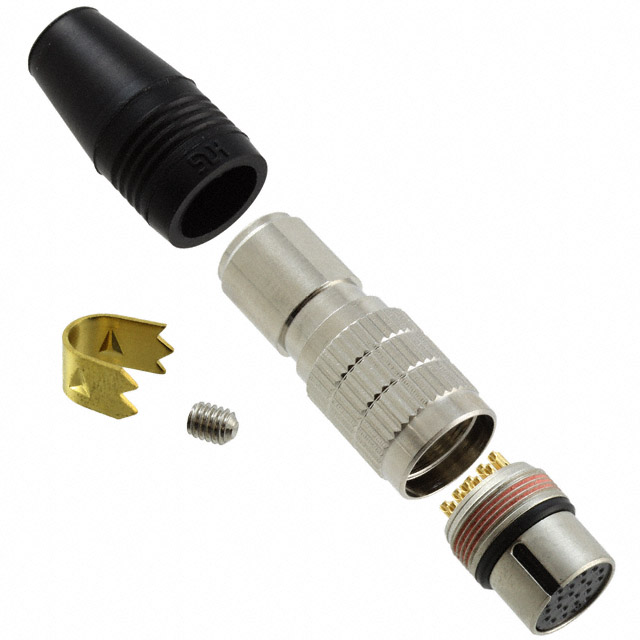

Hirose Electric Co Ltd HR25-9TP-20S(73)
Image shown is a representation only
Manufacturer
Manufacturer No
HR25-9TP-20S(73)
Quantity
3
Availability
In Stock
Packaging
Bag
Description
CONN PLUG FMALE 20P SOLDER CUP
Detailed Description
20 Position Circular Connector Plug, Female Sockets Solder Cup
DataSheet
Mfr
Hirose Electric Co Ltd
Color
Black, Silver
Series
HR25
Features
Backshell, Clamp, Coupling Nut, Strain Relief
Packaging
Bag
Shielding
Shielded
Orientation
Keyed
Part Status
Active
Termination
Solder Cup
Applications
Industrial
Shell Finish
Nickel
Mounting Type
Free Hanging (In-Line)
Connector Type
Plug, Female Sockets
Fastening Type
Threaded
Shell Material
Zinc Alloy
Voltage Rating
30VAC, 42VDC
Insert Material
Polyphenylene Sulfide (PPS)
Contact Material
Phosphor Bronze
Primary Material
Metal
Base Product Number
HR25
Number of Positions
20
Shell Size - Insert
9
Current Rating (Amps)
1A
Operating Temperature
-25°C ~ 85°C
Contact Finish - Mating
Gold
Backshell Material, Plating
Brass, Nickel
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Mating
8.00µin (0.203µm)
| Attribute | Value |
|---|---|
| Mfr | Hirose Electric Co Ltd |
| Color | Black, Silver |
| Series | HR25 |
| Features | Backshell, Clamp, Coupling Nut, Strain Relief |
| Packaging | Bag |
| Shielding | Shielded |
| Orientation | Keyed |
| Part Status | Active |
| Termination | Solder Cup |
| Applications | Industrial |
| Shell Finish | Nickel |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug, Female Sockets |
| Fastening Type | Threaded |
| Shell Material | Zinc Alloy |
| Voltage Rating | 30VAC, 42VDC |
| Insert Material | Polyphenylene Sulfide (PPS) |
| Contact Material | Phosphor Bronze |
| Primary Material | Metal |
| Base Product Number | HR25 |
| Number of Positions | 20 |
| Shell Size - Insert | 9 |
| Current Rating (Amps) | 1A |
| Operating Temperature | -25°C ~ 85°C |
| Contact Finish - Mating | Gold |
| Backshell Material, Plating | Brass, Nickel |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
