Step1: Product

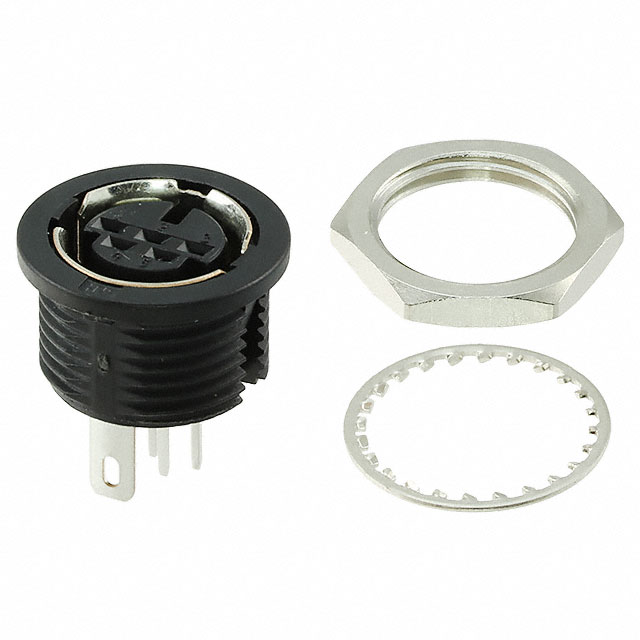

Hirose Electric Co Ltd HR12-10R-5SD(71)
Image shown is a representation only
Manufacturer
Manufacturer No
HR12-10R-5SD(71)
Quantity
10
Availability
In Stock
Packaging
Tray
Description
CONN RCPT FMALE 5POS TIN SOLDER
Detailed Description
5 Position Circular Connector Receptacle, Female Sockets Solder
DataSheet
Mfr
Hirose Electric Co Ltd
Color
Black
Series
HR12
Features
Ground
Packaging
Tray
Shielding
Shielded
Orientation
Keyed
Part Status
Active
Termination
Solder
Mounting Type
Panel Mount, Through Hole
Connector Type
Receptacle, Female Sockets
Fastening Type
Snap-In
Shell Material
Polybutylene Terephthalate (PBT)
Voltage Rating
100VAC, 140VDC
Contact Material
Phosphor Bronze
Mounting Feature
Bulkhead - Rear Side Nut
Primary Material
Plastic
Base Product Number
HR12
Number of Positions
5
Shell Size - Insert
10
Operating Temperature
-15°C ~ 60°C
Contact Finish - Mating
Tin
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Mating
118.1µin (3.00µm)
| Attribute | Value |
|---|---|
| Mfr | Hirose Electric Co Ltd |
| Color | Black |
| Series | HR12 |
| Features | Ground |
| Packaging | Tray |
| Shielding | Shielded |
| Orientation | Keyed |
| Part Status | Active |
| Termination | Solder |
| Mounting Type | Panel Mount, Through Hole |
| Connector Type | Receptacle, Female Sockets |
| Fastening Type | Snap-In |
| Shell Material | Polybutylene Terephthalate (PBT) |
| Voltage Rating | 100VAC, 140VDC |
| Contact Material | Phosphor Bronze |
| Mounting Feature | Bulkhead - Rear Side Nut |
| Primary Material | Plastic |
| Base Product Number | HR12 |
| Number of Positions | 5 |
| Shell Size - Insert | 10 |
| Operating Temperature | -15°C ~ 60°C |
| Contact Finish - Mating | Tin |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Mating | 118.1µin (3.00µm) |
