Step1: Product

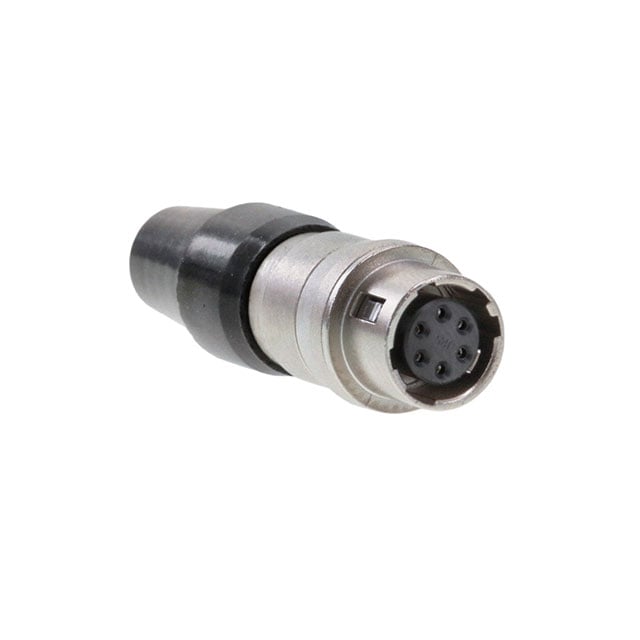

Hirose Electric Co Ltd HR10A-7J-6S(73)
Image shown is a representation only
Manufacturer
Manufacturer No
HR10A-7J-6S(73)
Quantity
19
Availability
In Stock
Packaging
Bag
Description
CONN JACK FMALE 6P SOLDER CUP
Detailed Description
6 Position Circular Connector Jack, Female Sockets Solder Cup
DataSheet
Mfr
Hirose Electric Co Ltd
Color
Silver
Series
HR10A
Features
Backshell, Clamp, Strain Relief
Packaging
Bag
Shielding
Unshielded
Orientation
Keyed
Part Status
Active
Termination
Solder Cup
Shell Finish
Nickel
Mounting Type
Free Hanging (In-Line)
Connector Type
Jack, Female Sockets
Fastening Type
Push-Pull
Shell Material
Zinc Alloy
Voltage Rating
100VAC, 140VDC
Insert Material
Polyamide (PA), Nylon
Contact Material
Phosphor Bronze
Primary Material
Metal
Base Product Number
HR10A
Number of Positions
6
Shell Size - Insert
7
Current Rating (Amps)
2A
Operating Temperature
-25°C ~ 85°C
Contact Finish - Mating
Silver
Backshell Material, Plating
Brass, Nickel
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Mating
78.7µin (2.00µm)
| Attribute | Value |
|---|---|
| Mfr | Hirose Electric Co Ltd |
| Color | Silver |
| Series | HR10A |
| Features | Backshell, Clamp, Strain Relief |
| Packaging | Bag |
| Shielding | Unshielded |
| Orientation | Keyed |
| Part Status | Active |
| Termination | Solder Cup |
| Shell Finish | Nickel |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Jack, Female Sockets |
| Fastening Type | Push-Pull |
| Shell Material | Zinc Alloy |
| Voltage Rating | 100VAC, 140VDC |
| Insert Material | Polyamide (PA), Nylon |
| Contact Material | Phosphor Bronze |
| Primary Material | Metal |
| Base Product Number | HR10A |
| Number of Positions | 6 |
| Shell Size - Insert | 7 |
| Current Rating (Amps) | 2A |
| Operating Temperature | -25°C ~ 85°C |
| Contact Finish - Mating | Silver |
| Backshell Material, Plating | Brass, Nickel |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Mating | 78.7µin (2.00µm) |
