Step1: Product

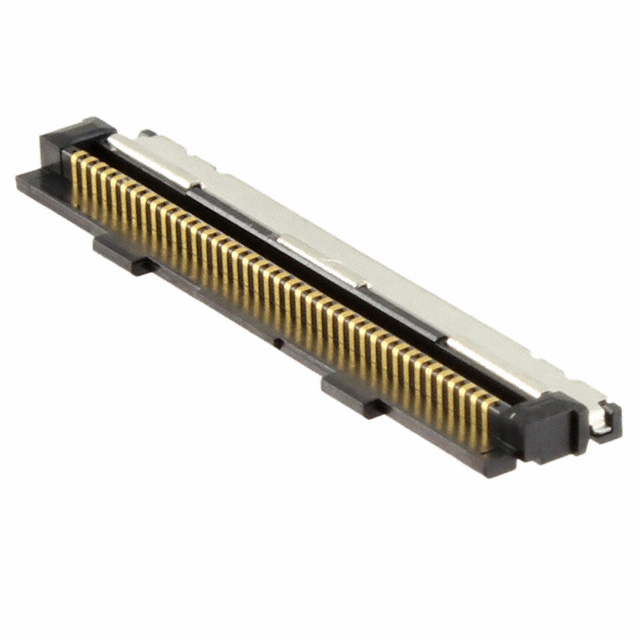

Hirose Electric Co Ltd DF80-40P-0.5SD(52)
Image shown is a representation only
Manufacturer
Manufacturer No
DF80-40P-0.5SD(52)
Packaging
Tape & Reel (TR)
Description
CONN PLUG 40POS SOLDER GOLD
Detailed Description
40 Position Rectangular Plug Connector Solder Gold 32-36 AWG, 40-46 AWG
DataSheet
Color
Black
Pitch
0.020" (0.50mm)
Series
DF80
Features
Closed End
Packaging
Tape & Reel (TR)
Wire Type
Discrete or Ribbon Cable
Wire Gauge
32-36 AWG, 40-46 AWG
Part Status
Obsolete
Contact Type
Outer Shroud Contact
Manufacturer
Hirose Electric Co Ltd
Mounting Type
Free Hanging (In-Line), Right Angle
Connector Type
Plug
Contact Finish
Gold
Fastening Type
Latch Lock
Number of Rows
1
Cable Termination
Solder
Base Product Number
DF80
Number of Positions
40
| Attribute | Value |
|---|---|
| Color | Black |
| Pitch | 0.020" (0.50mm) |
| Series | DF80 |
| Features | Closed End |
| Packaging | Tape & Reel (TR) |
| Wire Type | Discrete or Ribbon Cable |
| Wire Gauge | 32-36 AWG, 40-46 AWG |
| Part Status | Obsolete |
| Contact Type | Outer Shroud Contact |
| Manufacturer | Hirose Electric Co Ltd |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Connector Type | Plug |
| Contact Finish | Gold |
| Fastening Type | Latch Lock |
| Number of Rows | 1 |
| Cable Termination | Solder |
| Base Product Number | DF80 |
| Number of Positions | 40 |
