Step1: Product

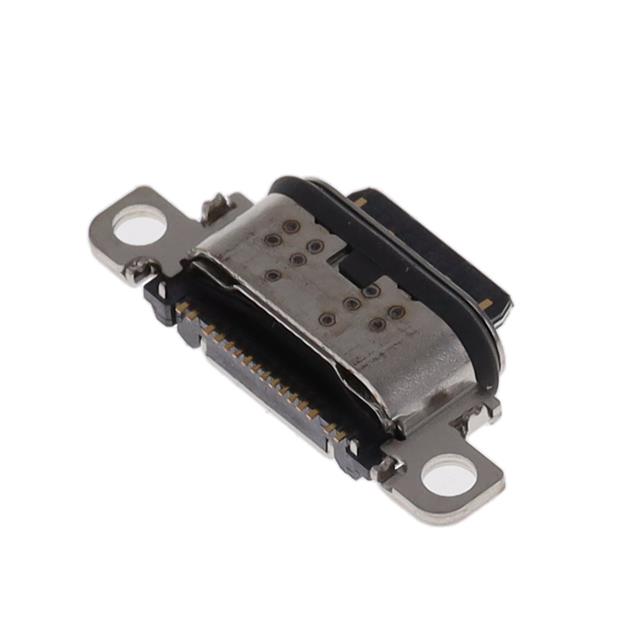

Hirose Electric Co Ltd CX90MW6-16P
Image shown is a representation only
Manufacturer
Manufacturer No
CX90MW6-16P
Quantity
11
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
CONN RCP USB C R/A MID MNT IP X8
Detailed Description
USB-C (USB TYPE-C) Receptacle Connector 24 Position Surface Mount, Right Angle
Datasheet
Gender
Receptacle
Series
CX
Packaging
Tape & Reel (TR); Cut Tape (CT)
Shielding
Shielded
Termination
Solder
Manufacturer
Hirose Electric Co Ltd
Mating Cycles
10000
Mounting Type
Surface Mount, Right Angle
Connector Type
USB-C (USB TYPE-C)
Contact Finish
Gold
Number of Ports
1
Voltage - Rated
48VAC/DC
Insulation Color
Black
Mounting Feature
Flange, Horizontal
Number of Contacts
24
Current Rating (Amps)
0.25A, 1.25A
Operating Temperature
-40°C ~ 105°C
Shell/Shielding Material
Steel, Stainless
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Gender | Receptacle |
| Series | CX |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Shielding | Shielded |
| Termination | Solder |
| Manufacturer | Hirose Electric Co Ltd |
| Mating Cycles | 10000 |
| Mounting Type | Surface Mount, Right Angle |
| Connector Type | USB-C (USB TYPE-C) |
| Contact Finish | Gold |
| Number of Ports | 1 |
| Voltage - Rated | 48VAC/DC |
| Insulation Color | Black |
| Mounting Feature | Flange, Horizontal |
| Number of Contacts | 24 |
| Current Rating (Amps) | 0.25A, 1.25A |
| Operating Temperature | -40°C ~ 105°C |
| Shell/Shielding Material | Steel, Stainless |
| Material Flammability Rating | UL94 V-0 |
