Step1: Product
Hirose Electric Co Ltd BM22-4S-V(51)

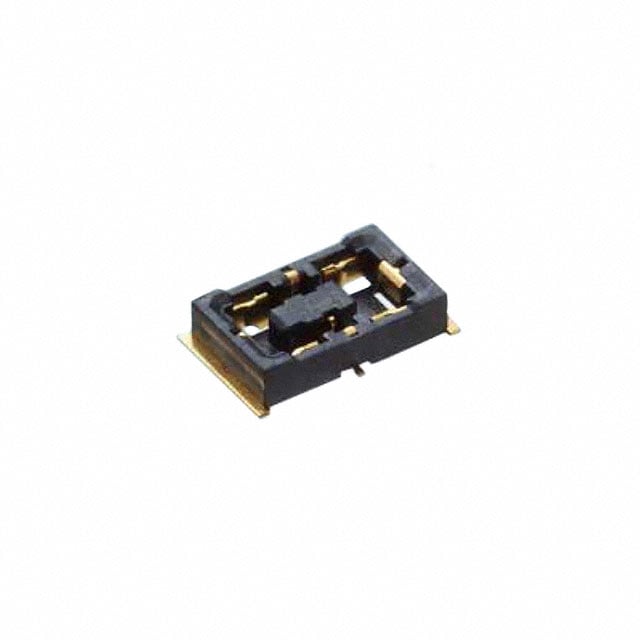

Image shown is a representation only
Manufacturer
Manufacturer No
BM22-4S-V(51)
Quantity
5140
Availability
In Stock
Packaging
Tape & Reel (TR)
Description
CONN RCPT 4POS GOLD SMD
Detailed Description
4 (2 + 2 Power) Position Receptacle Connector Surface Mount Gold
DataSheet
Mfr
Hirose Electric Co Ltd
Style
Board to FPC
Series
BM22
Features
Pick and Place
Packaging
Tape & Reel (TR)
Part Status
Active
Termination
Solder
Contact Type
Center Strip Contact
Mounting Type
Surface Mount
Connector Type
Receptacle
Fastening Type
Friction Lock
Number of Rows
2
Voltage Rating
50V
Contact Material
Copper Alloy
Insulation Color
Black
Insulation Height
0.035" (0.90mm)
Base Product Number
BM22
Insulation Material
Liquid Crystal Polymer (LCP)
Number of Positions
4 (2 + 2 Power)
Contact Finish - Post
Gold
Current Rating (Amps)
0.3A Signal, 4A Power
Operating Temperature
-35°C ~ 85°C
Mated Stacking Heights
0.9mm
Contact Finish - Mating
Gold
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
Flash
Contact Finish Thickness - Mating
1.97µin (0.050µm)
| Attribute | Value |
|---|---|
| Mfr | Hirose Electric Co Ltd |
| Style | Board to FPC |
| Series | BM22 |
| Features | Pick and Place |
| Packaging | Tape & Reel (TR) |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Center Strip Contact |
| Mounting Type | Surface Mount |
| Connector Type | Receptacle |
| Fastening Type | Friction Lock |
| Number of Rows | 2 |
| Voltage Rating | 50V |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Insulation Height | 0.035" (0.90mm) |
| Base Product Number | BM22 |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Number of Positions | 4 (2 + 2 Power) |
| Contact Finish - Post | Gold |
| Current Rating (Amps) | 0.3A Signal, 4A Power |
| Operating Temperature | -35°C ~ 85°C |
| Mated Stacking Heights | 0.9mm |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | Flash |
| Contact Finish Thickness - Mating | 1.97µin (0.050µm) |
