Step1: Product

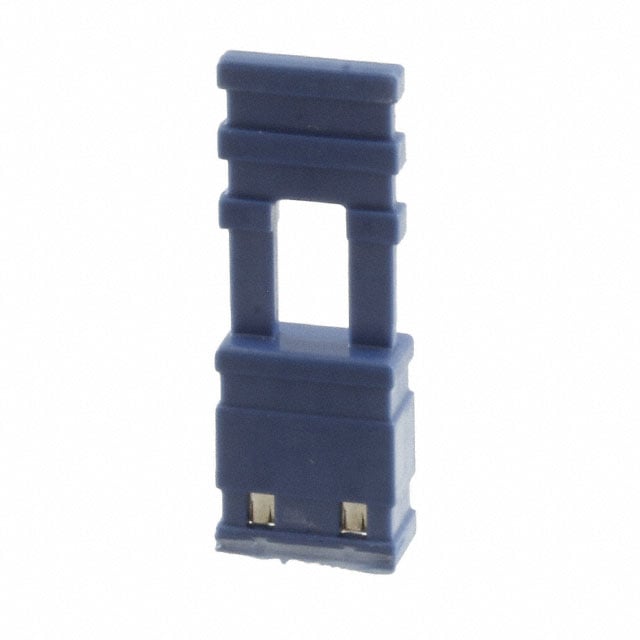

Harwin Inc. M7683-05

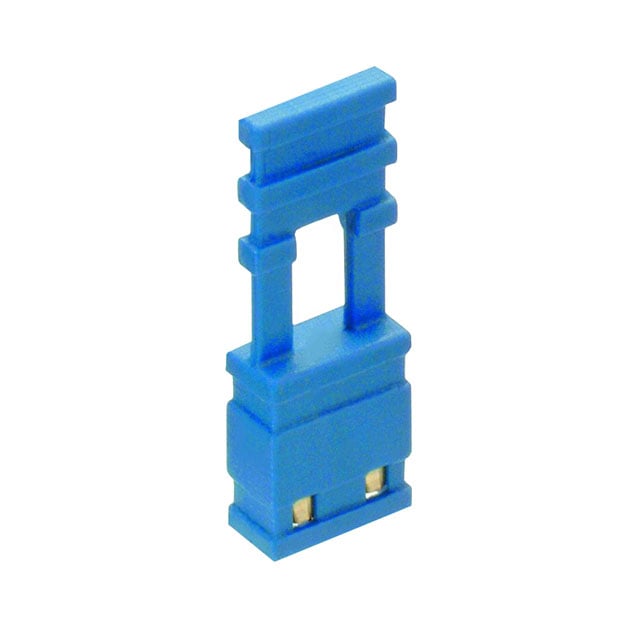

Image shown is a representation only
Manufacturer
Manufacturer No
M7683-05
Quantity
20
Availability
In Stock
Packaging
Bulk
Description
14MM JUMPER SKT W/HNDL BLUE
Detailed Description
2 (1 x 2) Position Shunt Connector Blue Closed Top, Grip 0.100" (2.54mm) Gold
DataSheet
Type
Closed Top, Grip
Color
Blue
Pitch
0.100" (2.54mm)
Gender
Female Sockets
Height
0.551" (14.00mm)
Series
M76
Packaging
Bulk
Part Status
Active
Manufacturer
Harwin Inc.
Contact Finish
Gold
Voltage Rating
250V
Housing Material
Polyester
Base Product Number
M7683
Current Rating (Amps)
3A
Contact Finish Thickness
5.11µin (0.130µm)
Material Flammability Rating
UL94 V-0
Number of Positions or Pins (Grid)
2 (1 x 2)
| Attribute | Value |
|---|---|
| Type | Closed Top, Grip |
| Color | Blue |
| Pitch | 0.100" (2.54mm) |
| Gender | Female Sockets |
| Height | 0.551" (14.00mm) |
| Series | M76 |
| Packaging | Bulk |
| Part Status | Active |
| Manufacturer | Harwin Inc. |
| Contact Finish | Gold |
| Voltage Rating | 250V |
| Housing Material | Polyester |
| Base Product Number | M7683 |
| Current Rating (Amps) | 3A |
| Contact Finish Thickness | 5.11µin (0.130µm) |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions or Pins (Grid) | 2 (1 x 2) |
