Step1: Product

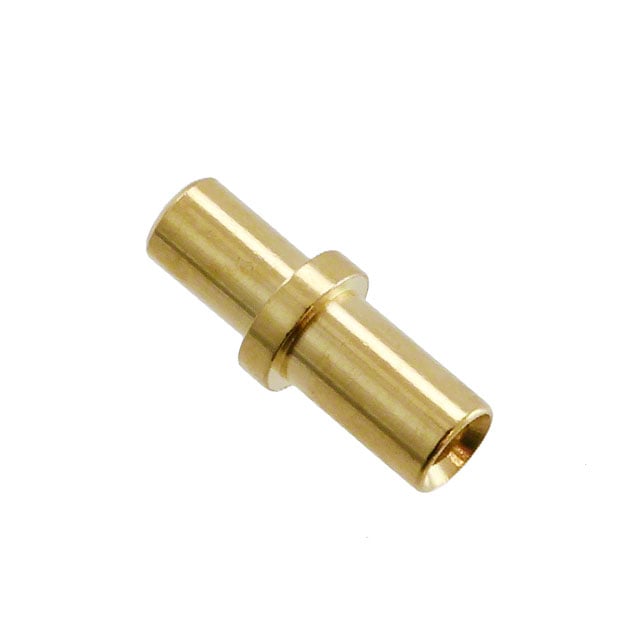

Harwin Inc. H3163-05
Image shown is a representation only
Manufacturer
Manufacturer No
H3163-05
Quantity
34
Availability
In Stock
Packaging
Bulk
Description
CONN PIN RCPT .035-.041 PRESSFIT
Detailed Description
Pin Receptacle Connector 0.035" ~ 0.041" (0.89mm ~ 1.05mm) No Tail Press-Fit
Datasheet
Packaging
Bulk
Tail Type
No Tail
Termination
Press-Fit
Manufacturer
Harwin Inc.
Socket Depth
0.192" (4.88mm)
Contact Finish
Gold
Flange Diameter
0.125" (3.18mm)
Insertion Force
3.00N ~ 9.00N
Contact Material
Beryllium Copper
Length - Overall
0.312" (7.92mm)
Base Product Number
H3163
Accepts Pin Diameter
0.035" ~ 0.041" (0.89mm ~ 1.05mm)
Operating Temperature
-55°C ~ 125°C
Mounting Hole Diameter
0.086" ~ 0.090" (2.18mm ~ 2.29mm)
Contact Finish Thickness
3.94µin (0.10µm)
| Attribute | Value |
|---|---|
| Packaging | Bulk |
| Tail Type | No Tail |
| Termination | Press-Fit |
| Manufacturer | Harwin Inc. |
| Socket Depth | 0.192" (4.88mm) |
| Contact Finish | Gold |
| Flange Diameter | 0.125" (3.18mm) |
| Insertion Force | 3.00N ~ 9.00N |
| Contact Material | Beryllium Copper |
| Length - Overall | 0.312" (7.92mm) |
| Base Product Number | H3163 |
| Accepts Pin Diameter | 0.035" ~ 0.041" (0.89mm ~ 1.05mm) |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Hole Diameter | 0.086" ~ 0.090" (2.18mm ~ 2.29mm) |
| Contact Finish Thickness | 3.94µin (0.10µm) |
