Step1: Product

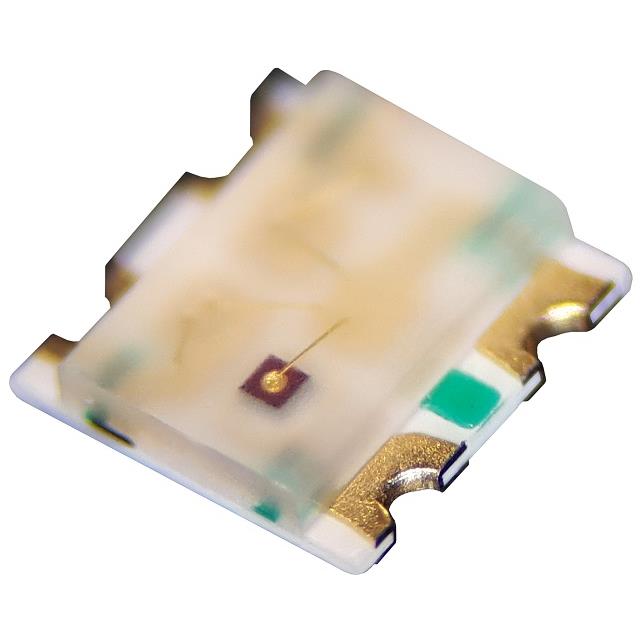

Harvatek Corporation B38G3RGB-20D0010H2U1930
Image shown is a representation only
Manufacturer
Manufacturer No
B38G3RGB-20D0010H2U1930
Package
0606 (1616 Metric)
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
LED RGB DIFFUSED 0606 SMD
Detailed Description
Red, Green, Blue (RGB) 624nm Red, 525nm Green, 470nm Blue LED Indication - Discrete 2V Red, 3.3V Green, 3.3V Blue 0606 (1616 Metric)
DataSheet
Mfr
Harvatek Corporation
Color
Red, Green, Blue (RGB)
Series
B38G3RGB-20
Lens Size
1.10mm x 1.60mm
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Lens Style
Rectangle with Flat Top
Part Status
Active
Height (Max)
0.50mm
Configuration
Common Anode
Mounting Type
Surface Mount
Viewing Angle
120°, 130°, 130°, 140°, 145°, 160°
Current - Test
20mA Red, 20mA Green, 20mA Blue
Package / Case
0606 (1616 Metric)
Size / Dimension
1.60mm L x 1.60mm W
Lens Transparency
Diffused
Wavelength - Peak
632nm Red, 520nm Green, 468nm Blue
Millicandela Rating
112.5mcd Red, 285mcd Green, 71.5mcd Blue
Wavelength - Dominant
624nm Red, 525nm Green, 470nm Blue
Supplier Device Package
0606
Voltage - Forward (Vf) (Typ)
2V Red, 3.3V Green, 3.3V Blue
| Attribute | Value |
|---|---|
| Mfr | Harvatek Corporation |
| Color | Red, Green, Blue (RGB) |
| Series | B38G3RGB-20 |
| Lens Size | 1.10mm x 1.60mm |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Lens Style | Rectangle with Flat Top |
| Part Status | Active |
| Height (Max) | 0.50mm |
| Configuration | Common Anode |
| Mounting Type | Surface Mount |
| Viewing Angle | 120°, 130°, 130°, 140°, 145°, 160° |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Package / Case | 0606 (1616 Metric) |
| Size / Dimension | 1.60mm L x 1.60mm W |
| Lens Transparency | Diffused |
| Wavelength - Peak | 632nm Red, 520nm Green, 468nm Blue |
| Millicandela Rating | 112.5mcd Red, 285mcd Green, 71.5mcd Blue |
| Wavelength - Dominant | 624nm Red, 525nm Green, 470nm Blue |
| Supplier Device Package | 0606 |
| Voltage - Forward (Vf) (Typ) | 2V Red, 3.3V Green, 3.3V Blue |
