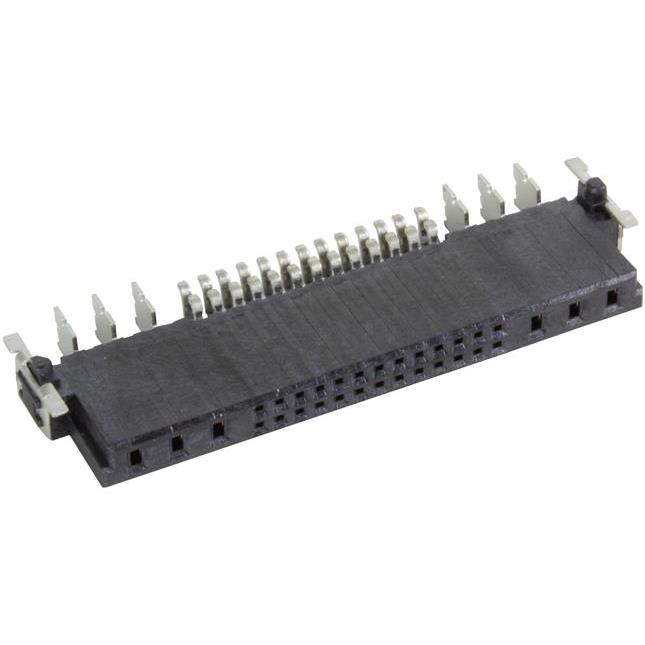

HARTING 15856262601000
Image shown is a representation only
Manufacturer
Manufacturer No
15856262601000
Packaging
Bulk
Description
HAR-FLEX HYBRID ANGLED FEMALE, 6
Detailed Description
44 (8 + 36 Power) Position Receptacle Connector Surface Mount, Right Angle; Through Hole Gold
DataSheet
Mfr
HARTING
Style
Board to Board
Series
har-flex®
Features
Board Guide, Solder Retention
Packaging
Bulk
Part Status
Active
Termination
Solder
Applications
General Purpose
Contact Type
Female Socket
Contact Shape
Rectangular
Mounting Type
Surface Mount, Right Angle; Through Hole
Connector Type
Receptacle
Fastening Type
Push-Pull
Number of Rows
2
Voltage Rating
50VAC, 120VDC
Contact Material
Copper Alloy
Insulation Color
Black
Insulation Height
0.120" (3.05mm)
Insulation Material
Liquid Crystal Polymer (LCP)
Number of Positions
44 (8 + 36 Power)
Row Spacing - Mating
0.050" (1.27mm)
Contact Finish - Post
Tin
Contact Length - Post
0.087" (2.20mm)
Current Rating (Amps)
22.5A
Operating Temperature
-55°C ~ 125°C
Contact Finish - Mating
Gold
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Mfr | HARTING |
| Style | Board to Board |
| Series | har-flex® |
| Features | Board Guide, Solder Retention |
| Packaging | Bulk |
| Part Status | Active |
| Termination | Solder |
| Applications | General Purpose |
| Contact Type | Female Socket |
| Contact Shape | Rectangular |
| Mounting Type | Surface Mount, Right Angle; Through Hole |
| Connector Type | Receptacle |
| Fastening Type | Push-Pull |
| Number of Rows | 2 |
| Voltage Rating | 50VAC, 120VDC |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Insulation Height | 0.120" (3.05mm) |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Number of Positions | 44 (8 + 36 Power) |
| Row Spacing - Mating | 0.050" (1.27mm) |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.087" (2.20mm) |
| Current Rating (Amps) | 22.5A |
| Operating Temperature | -55°C ~ 125°C |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
