Step1: Product
HARTING 15150062401000

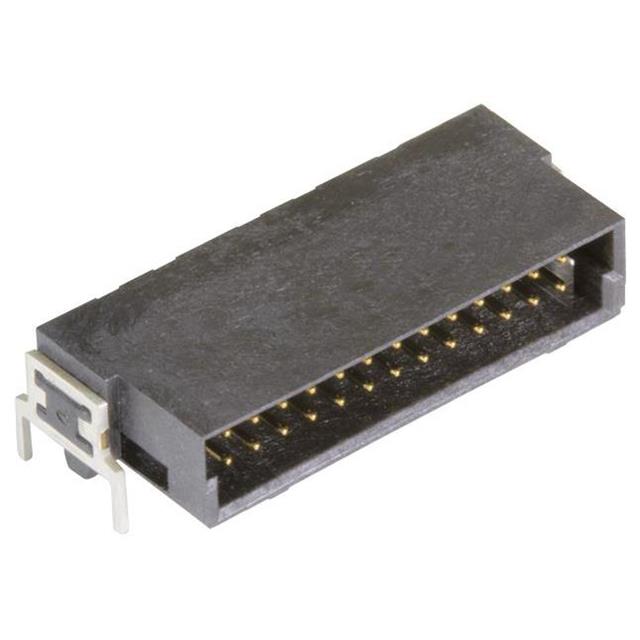

Image shown is a representation only
Manufacturer
Manufacturer No
15150062401000
Packaging
Tape & Reel (TR)
Description
HAR-FLEX ANGLED MALE, 6PIN, PL1,
Detailed Description
Connector Header Surface Mount, Right Angle 6 position 0.050" (1.27mm)
DataSheet
Mfr
HARTING
Style
Board to Board or Cable
Series
har-flex®
Features
Solder Retention
Packaging
Tape & Reel (TR)
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Surface Mount, Right Angle
Connector Type
Header
Fastening Type
Push-Pull
Number of Rows
2
Pitch - Mating
0.050" (1.27mm)
Contact Material
Copper Alloy
Insulation Color
Black
Insulation Height
0.167" (4.25mm)
Insulation Material
Liquid Crystal Polymer (LCP)
Number of Positions
6
Row Spacing - Mating
0.050" (1.27mm)
Contact Finish - Post
Tin
Operating Temperature
-55°C ~ 125°C
Contact Finish - Mating
Gold
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Mfr | HARTING |
| Style | Board to Board or Cable |
| Series | har-flex® |
| Features | Solder Retention |
| Packaging | Tape & Reel (TR) |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Surface Mount, Right Angle |
| Connector Type | Header |
| Fastening Type | Push-Pull |
| Number of Rows | 2 |
| Pitch - Mating | 0.050" (1.27mm) |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Insulation Height | 0.167" (4.25mm) |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Number of Positions | 6 |
| Row Spacing - Mating | 0.050" (1.27mm) |
| Contact Finish - Post | Tin |
| Operating Temperature | -55°C ~ 125°C |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
