Step1: Product

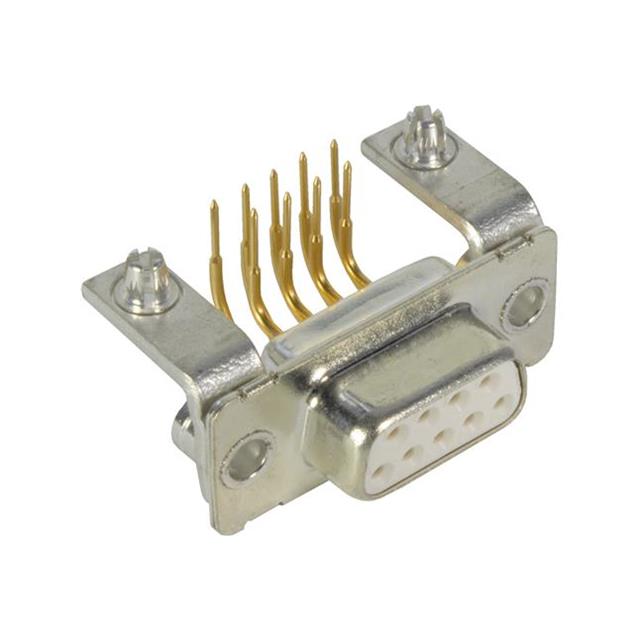

HARTING 09671526801
Image shown is a representation only
Manufacturer
Manufacturer No
09671526801
Packaging
Bulk
Description
CONN D-SUB RCPT 9POS R/A SOLDER
Detailed Description
9 Position D-Sub Receptacle, Female Sockets Connector
DataSheet
Mfr
HARTING
Color
White
Features
Board Lock
Packaging
Bulk
Part Status
Active
Termination
Solder
Contact Type
Signal
Mounting Type
Through Hole, Right Angle
Connector Type
Receptacle, Female Sockets
Flange Feature
Housing/Shell (M3)
Number of Rows
2
Connector Style
D-Sub
Contact Material
Copper Alloy
Primary Material
Metal
Base Product Number
09671526
Dielectric Material
Polybutylene Terephthalate (PBTP), Glass Filled
Number of Positions
9
Current Rating (Amps)
7.5A
Operating Temperature
-55°C ~ 125°C
Shell Material, Finish
Steel, Tin Plated
Material Flammability Rating
UL94 V-0
Shell Size, Connector Layout
1 (DE, E)
| Attribute | Value |
|---|---|
| Mfr | HARTING |
| Color | White |
| Features | Board Lock |
| Packaging | Bulk |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Signal |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Receptacle, Female Sockets |
| Flange Feature | Housing/Shell (M3) |
| Number of Rows | 2 |
| Connector Style | D-Sub |
| Contact Material | Copper Alloy |
| Primary Material | Metal |
| Base Product Number | 09671526 |
| Dielectric Material | Polybutylene Terephthalate (PBTP), Glass Filled |
| Number of Positions | 9 |
| Current Rating (Amps) | 7.5A |
| Operating Temperature | -55°C ~ 125°C |
| Shell Material, Finish | Steel, Tin Plated |
| Material Flammability Rating | UL94 V-0 |
| Shell Size, Connector Layout | 1 (DE, E) |
