Step1: Product

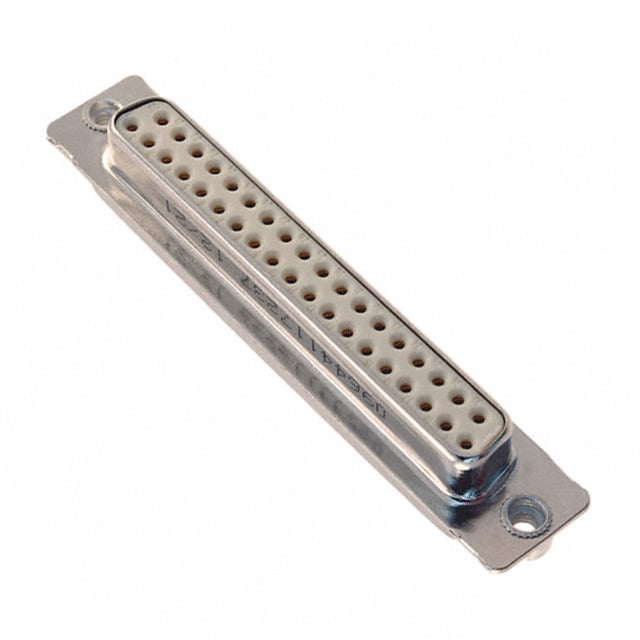

HARTING 09644117237
Image shown is a representation only
Manufacturer
Manufacturer No
09644117237
Packaging
Bulk
Description
CONN D-SUB RCPT 37POS SOLDER CUP
Detailed Description
37 Position D-Sub Receptacle, Female Sockets Connector
DataSheet
Mfr
HARTING
Color
Natural
Features
Filter
Packaging
Bulk
Wire Gauge
20 AWG
Part Status
Active
Termination
Solder Cup
Contact Form
Machined
Contact Type
Signal
Mounting Type
Free Hanging (In-Line)
Connector Type
Receptacle, Female Sockets
Flange Feature
Cable Side (4-40)
Number of Rows
2
Voltage Rating
100V
Connector Style
D-Sub
Contact Material
Copper Alloy
Base Product Number
09644117
Dielectric Material
Polycyclohexylenedimethylene Terephthalate (PCT)
Number of Positions
37
Current Rating (Amps)
7.5A
Operating Temperature
-55°C ~ 125°C
Shell Material, Finish
Steel, Tin Plated
Material Flammability Rating
UL94 V-0
Shell Size, Connector Layout
4 (DC, C)
| Attribute | Value |
|---|---|
| Mfr | HARTING |
| Color | Natural |
| Features | Filter |
| Packaging | Bulk |
| Wire Gauge | 20 AWG |
| Part Status | Active |
| Termination | Solder Cup |
| Contact Form | Machined |
| Contact Type | Signal |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Receptacle, Female Sockets |
| Flange Feature | Cable Side (4-40) |
| Number of Rows | 2 |
| Voltage Rating | 100V |
| Connector Style | D-Sub |
| Contact Material | Copper Alloy |
| Base Product Number | 09644117 |
| Dielectric Material | Polycyclohexylenedimethylene Terephthalate (PCT) |
| Number of Positions | 37 |
| Current Rating (Amps) | 7.5A |
| Operating Temperature | -55°C ~ 125°C |
| Shell Material, Finish | Steel, Tin Plated |
| Material Flammability Rating | UL94 V-0 |
| Shell Size, Connector Layout | 4 (DC, C) |
