Step1: Product

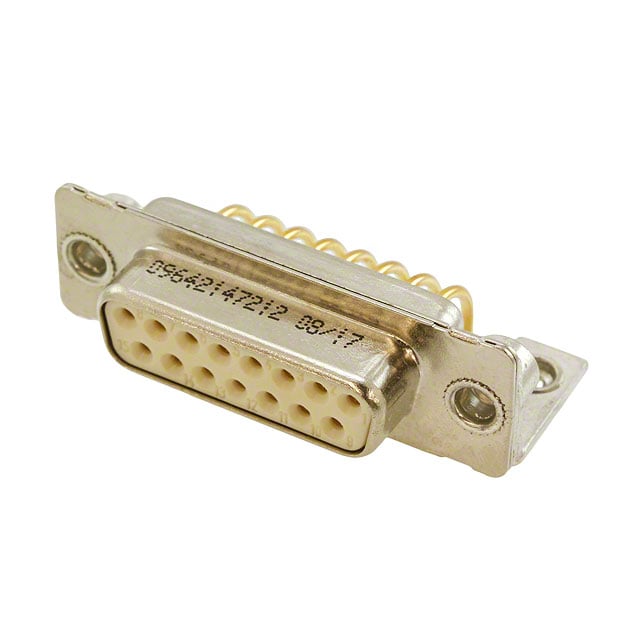

HARTING 09642147212
Image shown is a representation only
Manufacturer
Manufacturer No
09642147212
Packaging
Bulk
Description
CONN D-SUB RCPT 15POS R/A SOLDER
Detailed Description
15 Position D-Sub Receptacle, Female Sockets Connector
DataSheet
Mfr
HARTING
Color
Natural
Features
Board Lock, Filter, Mounting Brackets
Packaging
Bulk
Part Status
Active
Termination
Solder
Contact Form
Machined
Contact Type
Signal
Mounting Type
Through Hole, Right Angle
Connector Type
Receptacle, Female Sockets
Flange Feature
Housing/Shell (4-40)
Number of Rows
2
Voltage Rating
100V
Backset Spacing
0.401" (10.20mm)
Connector Style
D-Sub
Contact Material
Copper Alloy
Base Product Number
09642147
Dielectric Material
Polycyclohexylenedimethylene Terephthalate (PCT)
Number of Positions
15
Current Rating (Amps)
7.5A
Operating Temperature
-20°C ~ 125°C
Shell Material, Finish
Steel
Material Flammability Rating
UL94 V-0
Shell Size, Connector Layout
2 (DA, A)
| Attribute | Value |
|---|---|
| Mfr | HARTING |
| Color | Natural |
| Features | Board Lock, Filter, Mounting Brackets |
| Packaging | Bulk |
| Part Status | Active |
| Termination | Solder |
| Contact Form | Machined |
| Contact Type | Signal |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Receptacle, Female Sockets |
| Flange Feature | Housing/Shell (4-40) |
| Number of Rows | 2 |
| Voltage Rating | 100V |
| Backset Spacing | 0.401" (10.20mm) |
| Connector Style | D-Sub |
| Contact Material | Copper Alloy |
| Base Product Number | 09642147 |
| Dielectric Material | Polycyclohexylenedimethylene Terephthalate (PCT) |
| Number of Positions | 15 |
| Current Rating (Amps) | 7.5A |
| Operating Temperature | -20°C ~ 125°C |
| Shell Material, Finish | Steel |
| Material Flammability Rating | UL94 V-0 |
| Shell Size, Connector Layout | 2 (DA, A) |
