Step1: Product
HARTING 09300480321

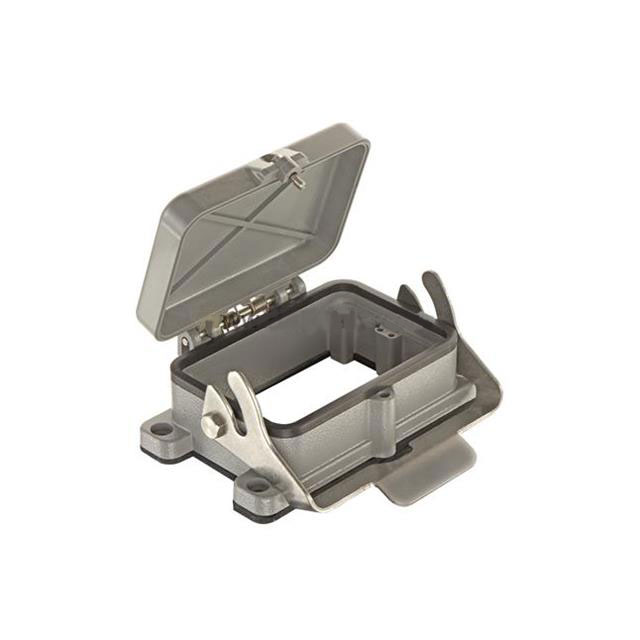

Image shown is a representation only
Manufacturer
Manufacturer No
09300480321
Packaging
Bulk
Description
HAN 48B-HBM-SL-CP
Detailed Description
Base - Panel Mount Connector Bottom Entry 48B IP65 - Dust Tight, Water Resistant
DataSheet
Size
48B
Style
Bottom Entry
Series
Han® B
Features
Cover
Packaging
Bulk
Part Status
Active
Manufacturer
HARTING
Housing Color
Gray
Lock Location
Locking Clip (1) on Base Bottom
Connector Type
Base - Panel Mount
Housing Finish
Powder Coated
Housing Material
Aluminum, Die Cast
Size / Dimension
6.496" L x 3.780" W x 1.665" H (165.00mm x 96.00mm x 42.30mm)
Ingress Protection
IP65 - Dust Tight, Water Resistant
Base Product Number
09300480
Operating Temperature
-40°C ~ 125°C
| Attribute | Value |
|---|---|
| Size | 48B |
| Style | Bottom Entry |
| Series | Han® B |
| Features | Cover |
| Packaging | Bulk |
| Part Status | Active |
| Manufacturer | HARTING |
| Housing Color | Gray |
| Lock Location | Locking Clip (1) on Base Bottom |
| Connector Type | Base - Panel Mount |
| Housing Finish | Powder Coated |
| Housing Material | Aluminum, Die Cast |
| Size / Dimension | 6.496" L x 3.780" W x 1.665" H (165.00mm x 96.00mm x 42.30mm) |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Base Product Number | 09300480 |
| Operating Temperature | -40°C ~ 125°C |
