Step1: Product

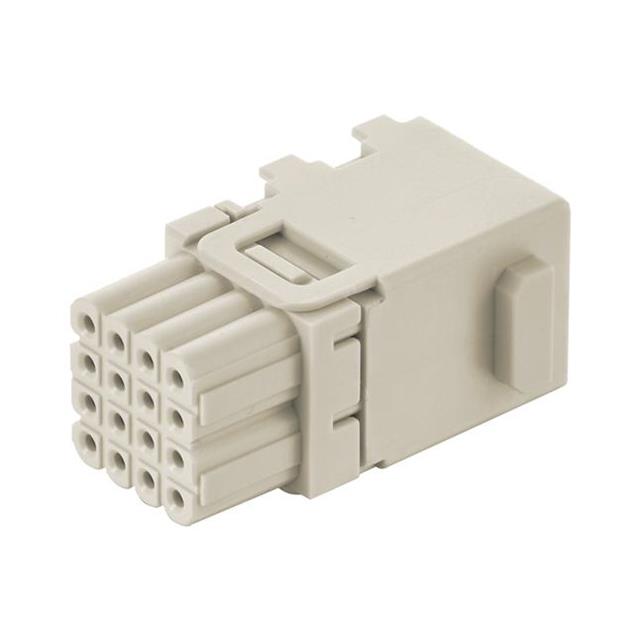

HARTING 09149162101
Image shown is a representation only
Manufacturer
Manufacturer No
09149162101
Packaging
Bulk
Description
HAN DOMINO 16PIN HD CUBE FEMALE
Detailed Description
Female Module without Contacts Gray 16 Position Crimp
DataSheet
Color
Gray
Gender
Female
Series
Han-Modular®
Packaging
Bulk
Part Status
Active
Contact Type
Han-Modular®
Manufacturer
HARTING
Connector Type
Module without Contacts
Voltage Rating
32V
Housing Material
Polycarbonate (PC)
Termination Style
Crimp
Base Product Number
09149162
Number of Positions
16
Current Rating (Amps)
4A
Operating Temperature
-40°C ~ 125°C
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Color | Gray |
| Gender | Female |
| Series | Han-Modular® |
| Packaging | Bulk |
| Part Status | Active |
| Contact Type | Han-Modular® |
| Manufacturer | HARTING |
| Connector Type | Module without Contacts |
| Voltage Rating | 32V |
| Housing Material | Polycarbonate (PC) |
| Termination Style | Crimp |
| Base Product Number | 09149162 |
| Number of Positions | 16 |
| Current Rating (Amps) | 4A |
| Operating Temperature | -40°C ~ 125°C |
| Material Flammability Rating | UL94 V-0 |
