Step1: Product
HARTING 02539031301

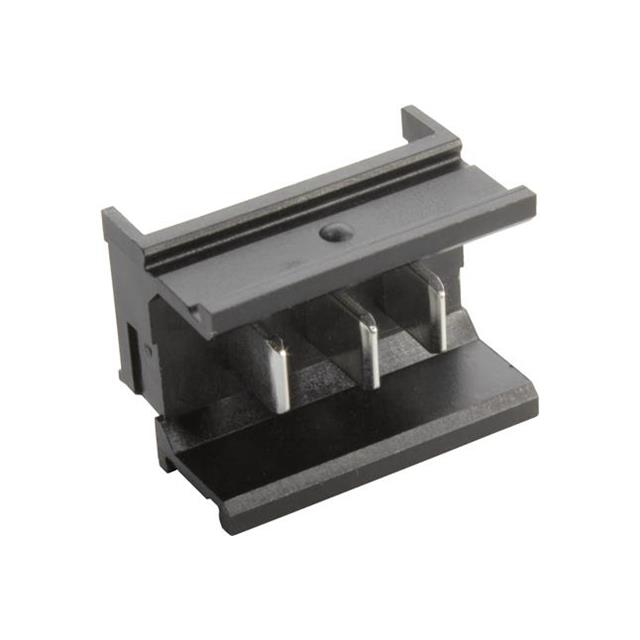

Image shown is a representation only
Manufacturer
Manufacturer No
02539031301
Packaging
Tube
Description
3 POSITION 15A STRAIGHT MALE
Detailed Description
Connector Header Through Hole 3 position 0.200" (5.08mm)
DataSheet
Mfr
HARTING
Style
Board to Cable/Wire
Series
har-modular®
Packaging
Tube
Shrouding
Shrouded - 2 Wall
Part Status
Active
Termination
Solder
Contact Type
Male Blade
Contact Shape
Rectangular
Mounting Type
Through Hole
Connector Type
Header
Fastening Type
Push-Pull
Number of Rows
1
Pitch - Mating
0.200" (5.08mm)
Contact Material
Copper Alloy
Insulation Color
Black
Insulation Height
0.494" (12.55mm)
Base Product Number
0253903
Insulation Material
Polyamide (PA), Nylon
Number of Positions
3
Contact Length - Post
0.189" (4.80mm)
Current Rating (Amps)
15A
Operating Temperature
-55°C ~ 125°C
Contact Finish - Mating
Silver
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Mfr | HARTING |
| Style | Board to Cable/Wire |
| Series | har-modular® |
| Packaging | Tube |
| Shrouding | Shrouded - 2 Wall |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Male Blade |
| Contact Shape | Rectangular |
| Mounting Type | Through Hole |
| Connector Type | Header |
| Fastening Type | Push-Pull |
| Number of Rows | 1 |
| Pitch - Mating | 0.200" (5.08mm) |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Insulation Height | 0.494" (12.55mm) |
| Base Product Number | 0253903 |
| Insulation Material | Polyamide (PA), Nylon |
| Number of Positions | 3 |
| Contact Length - Post | 0.189" (4.80mm) |
| Current Rating (Amps) | 15A |
| Operating Temperature | -55°C ~ 125°C |
| Contact Finish - Mating | Silver |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
