Step1: Product

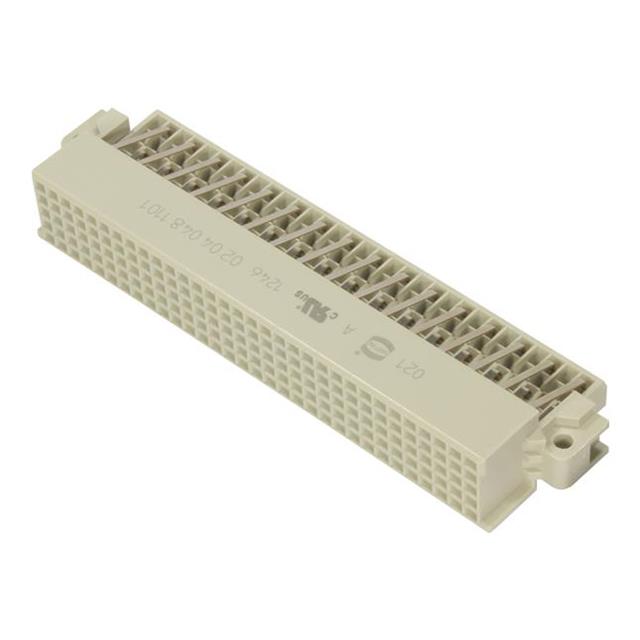

HARTING 02040481101
Image shown is a representation only
Manufacturer
Manufacturer No
02040481101
Packaging
Bulk
Description
CONN DIN RCPT 160POS
Detailed Description
160 Position Din Connector Receptacle, Female Sockets Gold Board Edge, Through Hole, Right Angle
DataSheet
Pitch
0.100" (2.54mm)
Style
E
Series
DIN 41612
Features
Board Guide
Packaging
Bulk
Part Status
Active
Termination
Solder
Level, Class
1
Manufacturer
HARTING
Mounting Type
Board Edge, Through Hole, Right Angle
Connector Type
Receptacle, Female Sockets
Contact Finish
Gold
Number of Rows
5
Base Product Number
0204048
Number of Positions
160
Current Rating (Amps)
1A
Material - Insulation
Thermoplastic, Glass Filled
Operating Temperature
-55°C ~ 125°C
Number of Positions Loaded
48
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Pitch | 0.100" (2.54mm) |
| Style | E |
| Series | DIN 41612 |
| Features | Board Guide |
| Packaging | Bulk |
| Part Status | Active |
| Termination | Solder |
| Level, Class | 1 |
| Manufacturer | HARTING |
| Mounting Type | Board Edge, Through Hole, Right Angle |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Number of Rows | 5 |
| Base Product Number | 0204048 |
| Number of Positions | 160 |
| Current Rating (Amps) | 1A |
| Material - Insulation | Thermoplastic, Glass Filled |
| Operating Temperature | -55°C ~ 125°C |
| Number of Positions Loaded | 48 |
| Material Flammability Rating | UL94 V-0 |
