Harris Corporation HIP-2500IB

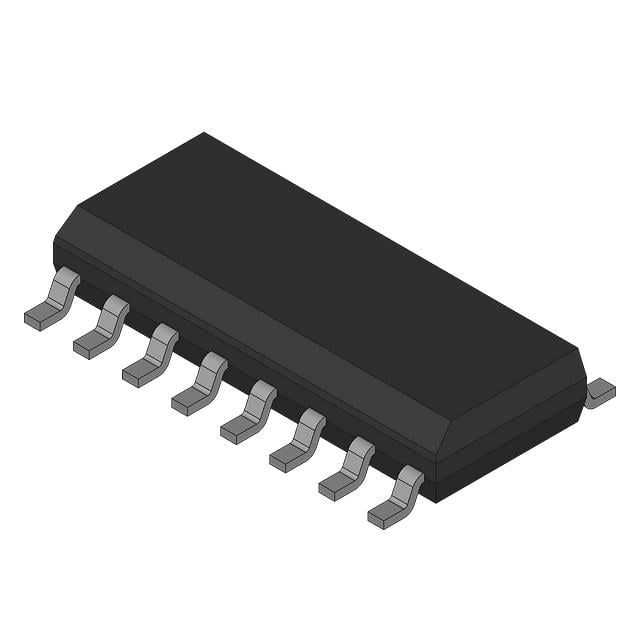

Image shown is a representation only
Manufacturer
Manufacturer No
HIP-2500IB
Package
16-SOIC (0.295", 7.50mm Width)
Packaging
Bulk
Description
HALF BRIDGE 500VDC DRIVER
Detailed Description
Half-Bridge Gate Driver IC Non-Inverting 16-SOIC
DataSheet
Gate Type
MOSFET (N-Channel)
Packaging
Bulk
Input Type
Non-Inverting
Part Status
Active
Channel Type
Synchronous
Manufacturer
Harris Corporation
Mounting Type
Surface Mount
Package / Case
16-SOIC (0.295", 7.50mm Width)
Voltage - Supply
10V ~ 15V
Number of Drivers
2
Base Product Number
HIP2500
DigiKey Programmable
Not Verified
Driven Configuration
Half-Bridge
Operating Temperature
-40°C ~ 85°C (TA)
Rise / Fall Time (Typ)
25ns, 25ns
Supplier Device Package
16-SOIC
High Side Voltage - Max (Bootstrap)
500 V
Current - Peak Output (Source, Sink)
2A, 2A
| Attribute | Value |
|---|---|
| Gate Type | MOSFET (N-Channel) |
| Packaging | Bulk |
| Input Type | Non-Inverting |
| Part Status | Active |
| Channel Type | Synchronous |
| Manufacturer | Harris Corporation |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Voltage - Supply | 10V ~ 15V |
| Number of Drivers | 2 |
| Base Product Number | HIP2500 |
| DigiKey Programmable | Not Verified |
| Driven Configuration | Half-Bridge |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Rise / Fall Time (Typ) | 25ns, 25ns |
| Supplier Device Package | 16-SOIC |
| High Side Voltage - Max (Bootstrap) | 500 V |
| Current - Peak Output (Source, Sink) | 2A, 2A |
