Step1: Product

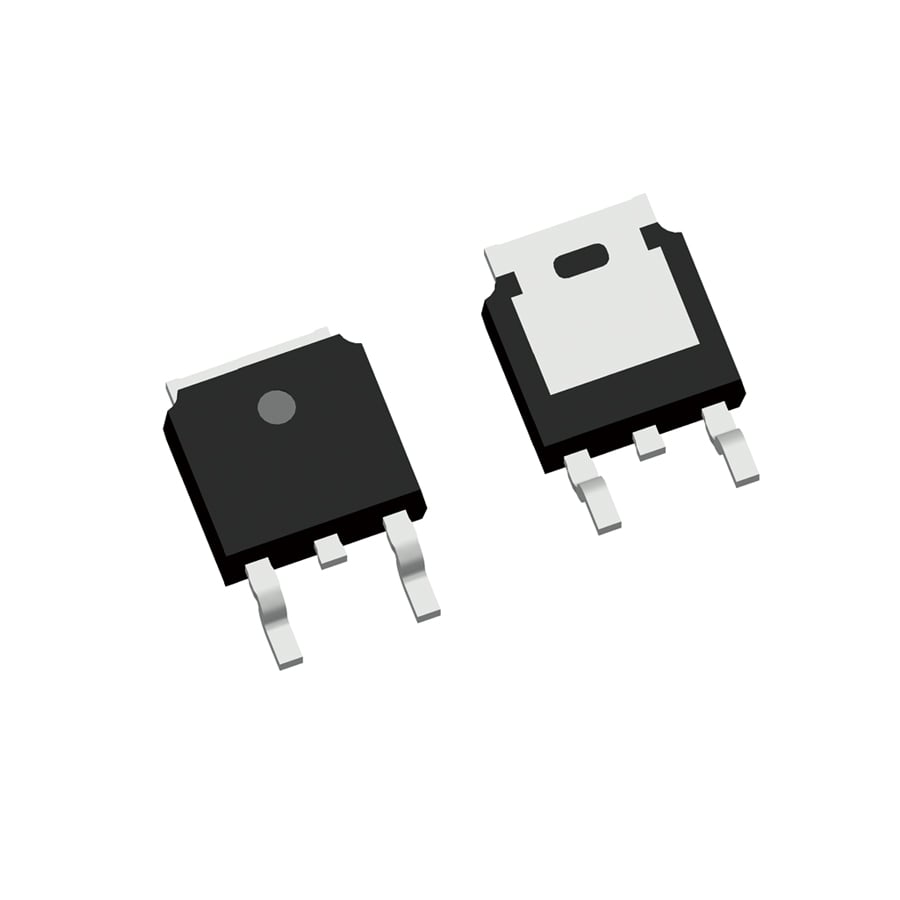

Guangdong Inmark Electronics Co., Ltd. MOT130N03D
Image shown is a representation only
Manufacturer
Manufacturer No
MOT130N03D
Packaging
Tape & Reel (TR)
Description
MOSFET N-CH 30V 130A 2.3m To-25
Detailed Description
N-Channel 30 V 130A 88W Surface Mount TO-252 (DPAK)
DataSheet
Mfr
Guangdong Inmark Electronics Co., Ltd.
FET Type
N-Channel
Packaging
Tape & Reel (TR)
Vgs (Max)
±20V
Technology
MOSFET (Metal Oxide)
Part Status
Active
Mounting Type
Surface Mount
Vgs(th) (Max) @ Id
2.5V @ 250µA
Operating Temperature
-40°C ~ 150°C (TJ)
Rds On (Max) @ Id, Vgs
3.5mOhm @ 20A, 10V
Power Dissipation (Max)
88W
Supplier Device Package
TO-252 (DPAK)
Gate Charge (Qg) (Max) @ Vgs
80 nC @ 10 V
Drain to Source Voltage (Vdss)
30 V
Input Capacitance (Ciss) (Max) @ Vds
3900 pF @ 12 V
Current - Continuous Drain (Id) @ 25°C
130A
| Attribute | Value |
|---|---|
| Mfr | Guangdong Inmark Electronics Co., Ltd. |
| FET Type | N-Channel |
| Packaging | Tape & Reel (TR) |
| Vgs (Max) | ±20V |
| Technology | MOSFET (Metal Oxide) |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 3.5mOhm @ 20A, 10V |
| Power Dissipation (Max) | 88W |
| Supplier Device Package | TO-252 (DPAK) |
| Gate Charge (Qg) (Max) @ Vgs | 80 nC @ 10 V |
| Drain to Source Voltage (Vdss) | 30 V |
| Input Capacitance (Ciss) (Max) @ Vds | 3900 pF @ 12 V |
| Current - Continuous Drain (Id) @ 25°C | 130A |
