Step1: Product
Greenconn GBEC209-0679B001C1AF

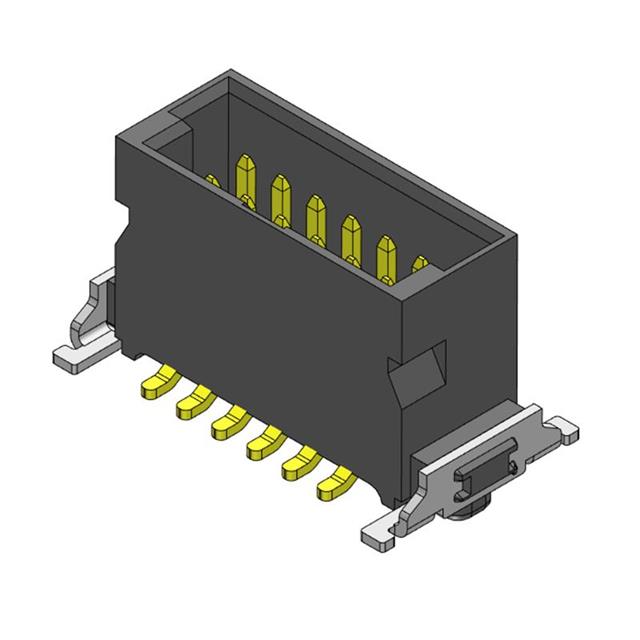

Image shown is a representation only
Manufacturer
Manufacturer No
GBEC209-0679B001C1AF
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
PITCH 1.27MM MALE SMC Q TYPE SMT
Detailed Description
Connector Header Surface Mount 12 position 0.050" (1.27mm)
Datasheet
Mfr
Greenconn
Style
Board to Cable/Wire
Series
GBEC209
Features
Board Guide, Pick and Place, Solder Retention
Packaging
Tape & Reel (TR); Cut Tape (CT)
Shrouding
Shrouded - 4 Wall
Termination
Solder
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Surface Mount
Connector Type
Header
Fastening Type
Push-Pull
Number of Rows
2
Pitch - Mating
0.050" (1.27mm)
Contact Material
Phosphor Bronze
Insulation Color
Black
Insulation Height
0.197" (5.00mm)
Insulation Material
Liquid Crystal Polymer (LCP)
Number of Positions
12
Row Spacing - Mating
0.050" (1.27mm)
Contact Finish - Post
Gold
Current Rating (Amps)
1.7A per Contact
Operating Temperature
-55°C ~ 125°C
Contact Finish - Mating
Gold
Contact Length - Mating
0.157" (4.00mm)
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
Flash
Contact Finish Thickness - Mating
Flash
| Attribute | Value |
|---|---|
| Mfr | Greenconn |
| Style | Board to Cable/Wire |
| Series | GBEC209 |
| Features | Board Guide, Pick and Place, Solder Retention |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Surface Mount |
| Connector Type | Header |
| Fastening Type | Push-Pull |
| Number of Rows | 2 |
| Pitch - Mating | 0.050" (1.27mm) |
| Contact Material | Phosphor Bronze |
| Insulation Color | Black |
| Insulation Height | 0.197" (5.00mm) |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Number of Positions | 12 |
| Row Spacing - Mating | 0.050" (1.27mm) |
| Contact Finish - Post | Gold |
| Current Rating (Amps) | 1.7A per Contact |
| Operating Temperature | -55°C ~ 125°C |
| Contact Finish - Mating | Gold |
| Contact Length - Mating | 0.157" (4.00mm) |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | Flash |
| Contact Finish Thickness - Mating | Flash |
