Step1: Product
Greenconn CBED202-2079B001C1AD

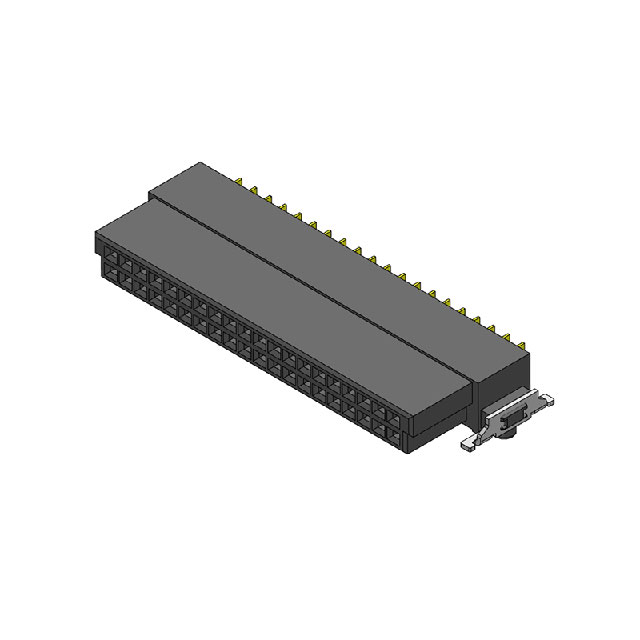

Image shown is a representation only
Manufacturer
Manufacturer No
CBED202-2079B001C1AD
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
PITCH 1.27MM FEMALE CONNETOR SMC
Detailed Description
40 Position Receptacle Connector 0.050" (1.27mm) Surface Mount, Right Angle Gold
Datasheet
Mfr
Greenconn
Style
Board to Board
Series
CBED202
Features
Board Guide, Solder Retention
Packaging
Tape & Reel (TR); Cut Tape (CT)
Termination
Solder
Contact Type
Female Socket
Contact Shape
Square
Mounting Type
Surface Mount, Right Angle
Connector Type
Receptacle
Fastening Type
Push-Pull
Number of Rows
2
Pitch - Mating
0.050" (1.27mm)
Contact Material
Phosphor Bronze
Insulation Color
Black
Insulation Height
0.152" (3.85mm)
Insulation Material
Liquid Crystal Polymer (LCP)
Number of Positions
40
Row Spacing - Mating
0.050" (1.27mm)
Contact Finish - Post
Gold
Current Rating (Amps)
1.7A per Contact
Operating Temperature
-55°C ~ 125°C
Contact Finish - Mating
Gold
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
Flash
Contact Finish Thickness - Mating
Flash
| Attribute | Value |
|---|---|
| Mfr | Greenconn |
| Style | Board to Board |
| Series | CBED202 |
| Features | Board Guide, Solder Retention |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Termination | Solder |
| Contact Type | Female Socket |
| Contact Shape | Square |
| Mounting Type | Surface Mount, Right Angle |
| Connector Type | Receptacle |
| Fastening Type | Push-Pull |
| Number of Rows | 2 |
| Pitch - Mating | 0.050" (1.27mm) |
| Contact Material | Phosphor Bronze |
| Insulation Color | Black |
| Insulation Height | 0.152" (3.85mm) |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Number of Positions | 40 |
| Row Spacing - Mating | 0.050" (1.27mm) |
| Contact Finish - Post | Gold |
| Current Rating (Amps) | 1.7A per Contact |
| Operating Temperature | -55°C ~ 125°C |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | Flash |
| Contact Finish Thickness - Mating | Flash |
