Step1: Product

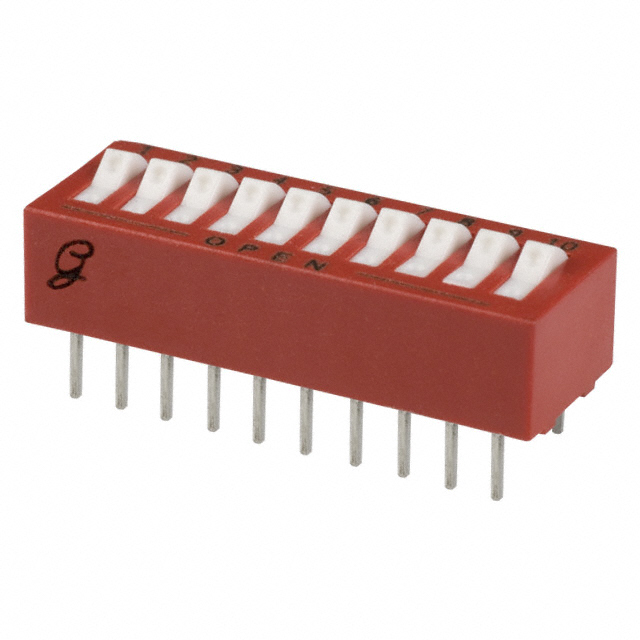

Grayhill Inc. 76SB10ST
Image shown is a representation only
Manufacturer
Manufacturer No
76SB10ST
Quantity
28
Availability
In Stock
Packaging
Tube
Description
SWITCH ROCKER DIP SPST 0.15A 30V
Detailed Description
Dip Switch SPST 10 Position Through Hole Rocker Actuator 150mA 30VDC
DataSheet
Pitch
0.100" (2.54mm), Full
Length
1.080" (27.43mm)
Series
76
Circuit
SPST
Features
Tape Seal
Washable
Yes
Packaging
Tube
Part Status
Active
Manufacturer
Grayhill Inc.
Actuator Type
Rocker
Body Material
Thermoplastic
Mounting Type
Through Hole
Actuator Level
Raised
Contact Finish
Gold
Voltage Rating
30VDC
Electrical Life
2,000 Cycles
Mechanical Life
2,000 Cycles
Contact Material
Copper Alloy
Termination Style
PC Pin
Height Above Board
0.315" (8.00mm)
Base Product Number
76SB
Number of Positions
10
Current Rating (Amps)
150mA
Operating Temperature
-40°C ~ 85°C
| Attribute | Value |
|---|---|
| Pitch | 0.100" (2.54mm), Full |
| Length | 1.080" (27.43mm) |
| Series | 76 |
| Circuit | SPST |
| Features | Tape Seal |
| Washable | Yes |
| Packaging | Tube |
| Part Status | Active |
| Manufacturer | Grayhill Inc. |
| Actuator Type | Rocker |
| Body Material | Thermoplastic |
| Mounting Type | Through Hole |
| Actuator Level | Raised |
| Contact Finish | Gold |
| Voltage Rating | 30VDC |
| Electrical Life | 2,000 Cycles |
| Mechanical Life | 2,000 Cycles |
| Contact Material | Copper Alloy |
| Termination Style | PC Pin |
| Height Above Board | 0.315" (8.00mm) |
| Base Product Number | 76SB |
| Number of Positions | 10 |
| Current Rating (Amps) | 150mA |
| Operating Temperature | -40°C ~ 85°C |
