Step1: Product

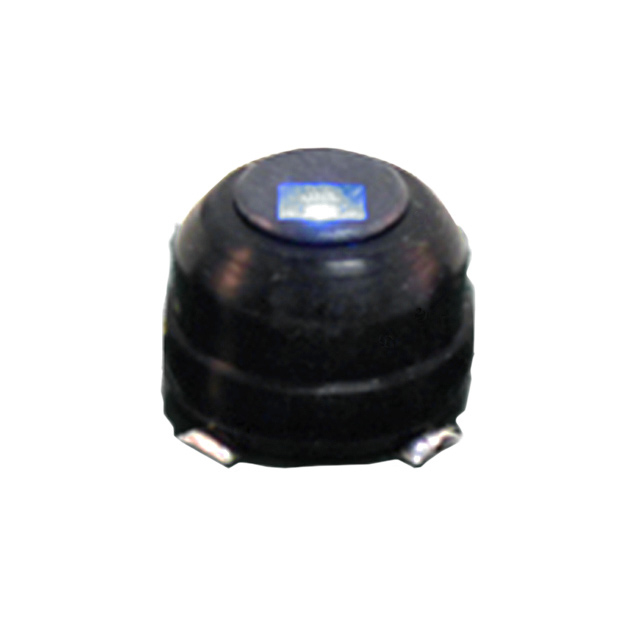

Grayhill Inc. 14SP-L1-03-B
Image shown is a representation only
Manufacturer
Manufacturer No
14SP-L1-03-B
Packaging
Tape & Reel (TR)
Description
SWITCH PUSH SPST-NO .1A 30V
Detailed Description
Pushbutton Switch SPST-NO Keyswitch, Illuminated Surface Mount
Datasheet
Mfr
Grayhill Inc.
Type
Keyswitch, Illuminated
Series
14
Circuit
SPST-NO
Features
Board Guide
Packaging
Tape & Reel (TR)
Actuator Type
Round, Button
Mounting Type
Surface Mount
Electrical Life
100,000 Cycles
Mechanical Life
100,000 Cycles
Switch Function
Off-Mom
Actuator Marking
No Marking
Termination Style
SMD (SMT) Tab
Ingress Protection
IP67 - Dust Tight, Waterproof
Base Product Number
14SP-L1
Voltage Rating - DC
30 V
Color - Actuator/Cap
Clear
Current Rating (Amps)
100mA (DC)
Operating Temperature
-40°C ~ 85°C
Illumination Type, Color
LED, Blue
Illumination Voltage (Nominal)
2.85 VDC
| Attribute | Value |
|---|---|
| Mfr | Grayhill Inc. |
| Type | Keyswitch, Illuminated |
| Series | 14 |
| Circuit | SPST-NO |
| Features | Board Guide |
| Packaging | Tape & Reel (TR) |
| Actuator Type | Round, Button |
| Mounting Type | Surface Mount |
| Electrical Life | 100,000 Cycles |
| Mechanical Life | 100,000 Cycles |
| Switch Function | Off-Mom |
| Actuator Marking | No Marking |
| Termination Style | SMD (SMT) Tab |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Base Product Number | 14SP-L1 |
| Voltage Rating - DC | 30 V |
| Color - Actuator/Cap | Clear |
| Current Rating (Amps) | 100mA (DC) |
| Operating Temperature | -40°C ~ 85°C |
| Illumination Type, Color | LED, Blue |
| Illumination Voltage (Nominal) | 2.85 VDC |
