Step1: Product
Gowanda Electronics 050KM1503SM

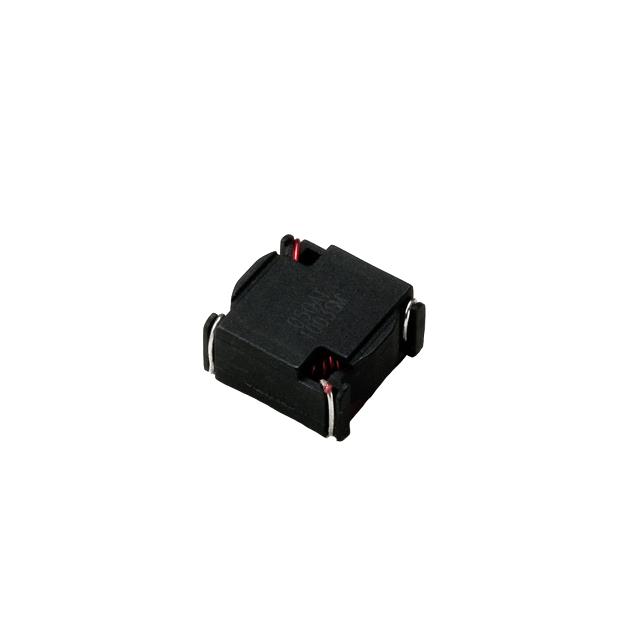

Image shown is a representation only
Manufacturer
Manufacturer No
050KM1503SM
Package
Nonstandard
Packaging
Tape & Reel (TR)
Description
FIXED IND 150UH 2.33A 100 MOHM
Detailed Description
150 µH Shielded Toroidal Inductor 2.33 A 100mOhm Max Nonstandard
DataSheet
Mfr
Gowanda Electronics
Type
Toroidal
Series
KMSM
Packaging
Tape & Reel (TR)
Shielding
Shielded
Tolerance
±10%
Inductance
150 µH
Part Status
Active
Mounting Type
Surface Mount
Package / Case
Nonstandard
Size / Dimension
0.700" L x 0.670" W (17.78mm x 17.02mm)
DC Resistance (DCR)
100mOhm Max
Current Rating (Amps)
2.33 A
Height - Seated (Max)
0.405" (10.28mm)
Operating Temperature
-55°C ~ 130°C
Frequency - Self Resonant
3MHz
Current - Saturation (Isat)
780mA
Inductance Frequency - Test
1 kHz
| Attribute | Value |
|---|---|
| Mfr | Gowanda Electronics |
| Type | Toroidal |
| Series | KMSM |
| Packaging | Tape & Reel (TR) |
| Shielding | Shielded |
| Tolerance | ±10% |
| Inductance | 150 µH |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 0.700" L x 0.670" W (17.78mm x 17.02mm) |
| DC Resistance (DCR) | 100mOhm Max |
| Current Rating (Amps) | 2.33 A |
| Height - Seated (Max) | 0.405" (10.28mm) |
| Operating Temperature | -55°C ~ 130°C |
| Frequency - Self Resonant | 3MHz |
| Current - Saturation (Isat) | 780mA |
| Inductance Frequency - Test | 1 kHz |
