Step1: Product
Glenair 806-020-Z19-11PMA

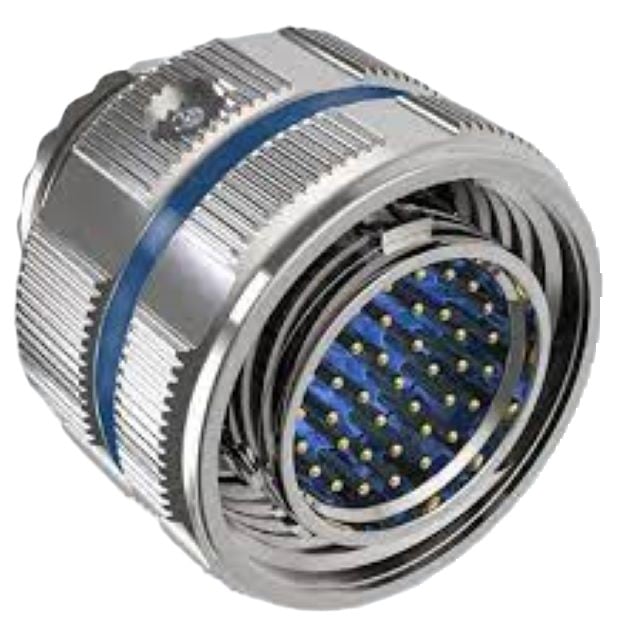

Image shown is a representation only
Manufacturer
Manufacturer No
806-020-Z19-11PMA
Packaging
Bulk
Description
MIGHT MOUSE CONNECTOR
Detailed Description
11 Position Circular Connector Receptacle, Male Pins Crimp
Datasheet
Mfr
Glenair
Series
Mighty Mouse 806
Packaging
Bulk
Shielding
Shielded
Orientation
A
Termination
Crimp
Applications
Aerospace, Aviation, Military
Shell Finish
Passivated
Mounting Type
Panel Mount
Connector Type
Receptacle, Male Pins
Fastening Type
Threaded
Shell Material
Stainless Steel
Contact Material
Copper Alloy
Mounting Feature
Bulkhead - Front Side Nut
Primary Material
Metal
Ingress Protection
Environment Resistant
Number of Positions
11
Shell Size - Insert
9-11
Operating Temperature
-65°C ~ 200°C
Contact Finish - Mating
Gold
Material Flammability Rating
Non Flammable
Contact Finish Thickness - Mating
50.0µin (1.27µm)
| Attribute | Value |
|---|---|
| Mfr | Glenair |
| Series | Mighty Mouse 806 |
| Packaging | Bulk |
| Shielding | Shielded |
| Orientation | A |
| Termination | Crimp |
| Applications | Aerospace, Aviation, Military |
| Shell Finish | Passivated |
| Mounting Type | Panel Mount |
| Connector Type | Receptacle, Male Pins |
| Fastening Type | Threaded |
| Shell Material | Stainless Steel |
| Contact Material | Copper Alloy |
| Mounting Feature | Bulkhead - Front Side Nut |
| Primary Material | Metal |
| Ingress Protection | Environment Resistant |
| Number of Positions | 11 |
| Shell Size - Insert | 9-11 |
| Operating Temperature | -65°C ~ 200°C |
| Contact Finish - Mating | Gold |
| Material Flammability Rating | Non Flammable |
| Contact Finish Thickness - Mating | 50.0µin (1.27µm) |
