Step1: Product

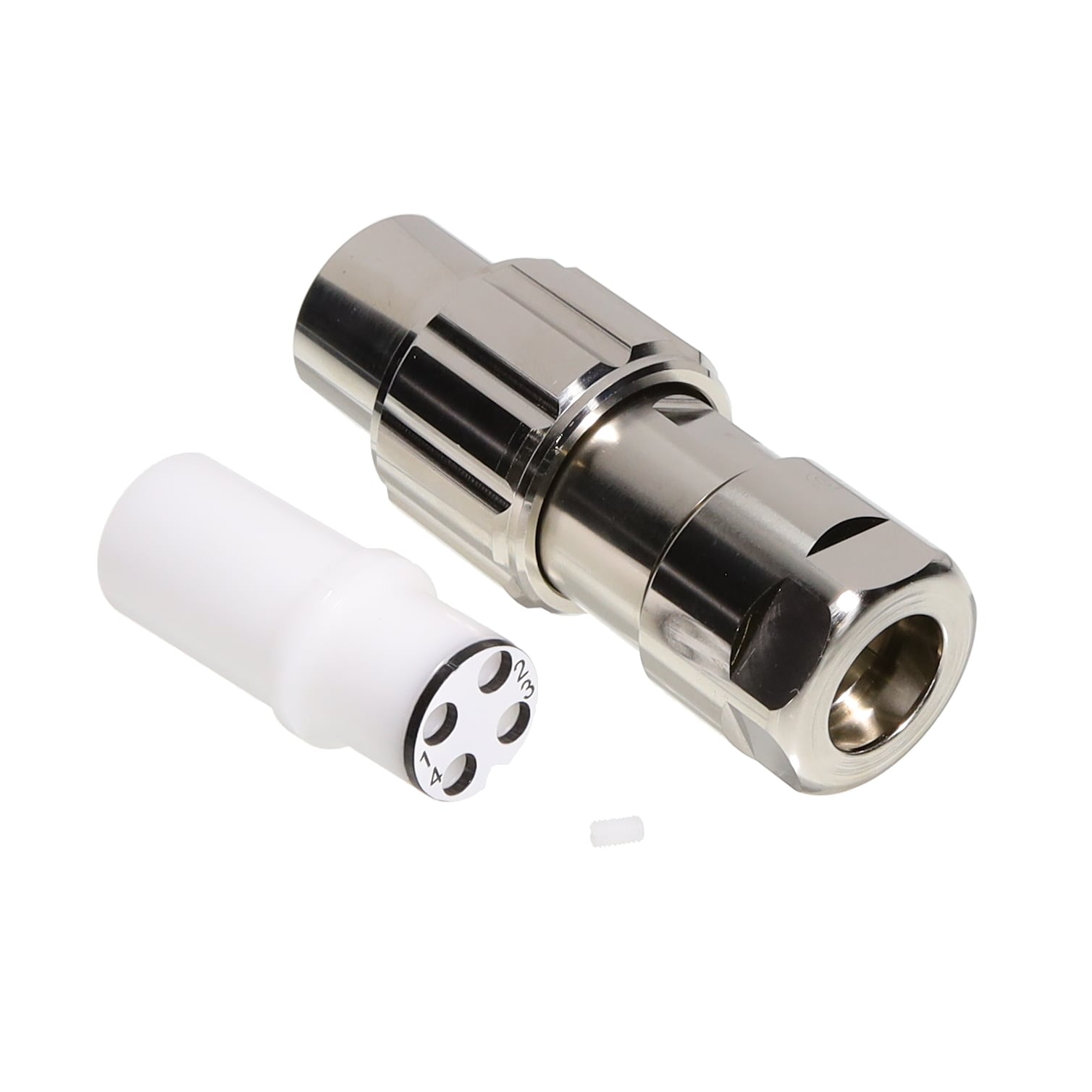

GES High Voltage 1070-PC2-010-04N14-RX
Image shown is a representation only
Manufacturer
Manufacturer No
1070-PC2-010-04N14-RX
Packaging
Bag
Description
MC407-PC, PLUG, 10 KVDC, 4P
Detailed Description
4 Position Circular Connector Plug, Male Pins Crimp or Solder
DataSheet
Mfr
GES High Voltage
Color
Silver, White
Series
MC
Features
High Voltage Connector
Packaging
Bag
Shielding
Shielded
Orientation
Keyed
Part Status
Active
Termination
Crimp or Solder
Applications
Industrial, Medical, Testing Equipment & Measurement
Shell Finish
Nickel
Cable Opening
0.157" (4.00mm)
Mounting Type
Free Hanging (In-Line)
Connector Type
Plug, Male Pins
Fastening Type
Threaded
Shell Material
Brass
Voltage Rating
10000VDC
Insert Material
Thermoplastic
Primary Material
Metal
Ingress Protection
IP61 - Dust Tight
Number of Positions
4
Current Rating (Amps)
13A
Operating Temperature
-30°C ~ 80°C
Backshell Material, Plating
Brass, Nickel
Material Flammability Rating
UL94 HB
| Attribute | Value |
|---|---|
| Mfr | GES High Voltage |
| Color | Silver, White |
| Series | MC |
| Features | High Voltage Connector |
| Packaging | Bag |
| Shielding | Shielded |
| Orientation | Keyed |
| Part Status | Active |
| Termination | Crimp or Solder |
| Applications | Industrial, Medical, Testing Equipment & Measurement |
| Shell Finish | Nickel |
| Cable Opening | 0.157" (4.00mm) |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug, Male Pins |
| Fastening Type | Threaded |
| Shell Material | Brass |
| Voltage Rating | 10000VDC |
| Insert Material | Thermoplastic |
| Primary Material | Metal |
| Ingress Protection | IP61 - Dust Tight |
| Number of Positions | 4 |
| Current Rating (Amps) | 13A |
| Operating Temperature | -30°C ~ 80°C |
| Backshell Material, Plating | Brass, Nickel |
| Material Flammability Rating | UL94 HB |
