Step1: Product

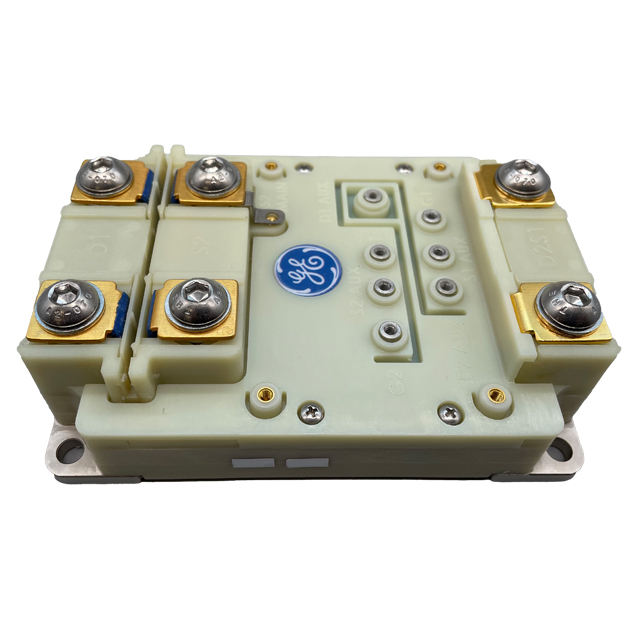

GE Aerospace GE17080CDA3
Image shown is a representation only
Manufacturer
Manufacturer No
GE17080CDA3
Package
Module
Packaging
Bulk
Description
MOSFET 2N-CH 1700V 765A MODULE
Detailed Description
Mosfet Array 1700V (1.7kV) 765A 2350W Chassis Mount Module
DataSheet
Series
SiC Power
Packaging
Bulk
Technology
Silicon Carbide (SiC)
Part Status
Active
Power - Max
2350W
Manufacturer
GE Aerospace
Configuration
2 N-Channel (Half Bridge)
Mounting Type
Chassis Mount
Qualification
AEC-Q101
Package / Case
Module
Vgs(th) (Max) @ Id
4.5V @ 160mA
Base Product Number
GE17080
Operating Temperature
-55°C ~ 175°C (TJ)
Rds On (Max) @ Id, Vgs
2.23mOhm @ 765A, 20V
Supplier Device Package
Module
Gate Charge (Qg) (Max) @ Vgs
2414nC @ 18V
Drain to Source Voltage (Vdss)
1700V (1.7kV)
Input Capacitance (Ciss) (Max) @ Vds
58000pF @ 900V
Current - Continuous Drain (Id) @ 25°C
765A
| Attribute | Value |
|---|---|
| Series | SiC Power |
| Packaging | Bulk |
| Technology | Silicon Carbide (SiC) |
| Part Status | Active |
| Power - Max | 2350W |
| Manufacturer | GE Aerospace |
| Configuration | 2 N-Channel (Half Bridge) |
| Mounting Type | Chassis Mount |
| Qualification | AEC-Q101 |
| Package / Case | Module |
| Vgs(th) (Max) @ Id | 4.5V @ 160mA |
| Base Product Number | GE17080 |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Rds On (Max) @ Id, Vgs | 2.23mOhm @ 765A, 20V |
| Supplier Device Package | Module |
| Gate Charge (Qg) (Max) @ Vgs | 2414nC @ 18V |
| Drain to Source Voltage (Vdss) | 1700V (1.7kV) |
| Input Capacitance (Ciss) (Max) @ Vds | 58000pF @ 900V |
| Current - Continuous Drain (Id) @ 25°C | 765A |
