Step1: Product

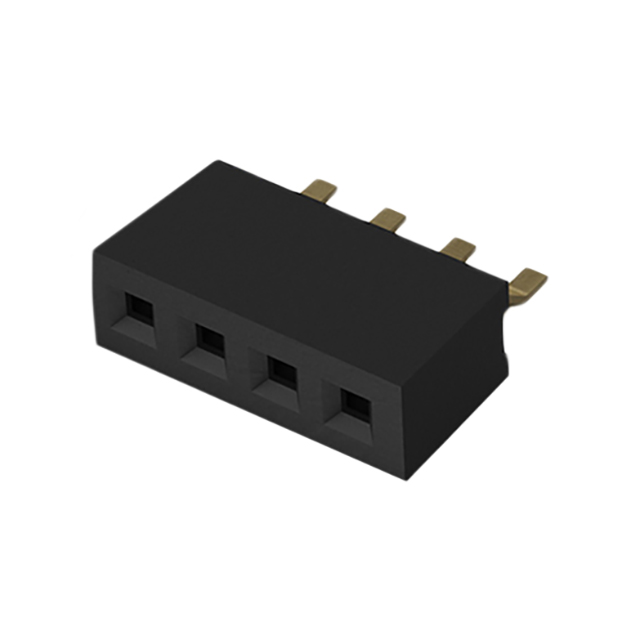

GCT BC075-04-A-L-A
Image shown is a representation only
Manufacturer
Manufacturer No
BC075-04-A-L-A
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
4POS 1.0MM PITCH SOCKET, SIL, SM
Detailed Description
4 Position Receptacle Connector 0.039" (1.00mm) Surface Mount, Right Angle Gold
DataSheet
Mfr
GCT
Style
Board to Board
Series
BC075
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Termination
Solder
Contact Type
Female Socket
Contact Shape
Square
Mounting Type
Surface Mount, Right Angle
Connector Type
Receptacle
Fastening Type
Push-Pull
Number of Rows
1
Pitch - Mating
0.039" (1.00mm)
Voltage Rating
250V
Contact Material
Phosphor Bronze
Insulation Color
Black
Insulation Height
0.059" (1.50mm)
Base Product Number
BC075
Insulation Material
Liquid Crystal Polymer (LCP)
Number of Positions
4
Contact Finish - Post
Gold
Current Rating (Amps)
1A per Contact
Operating Temperature
-40°C ~ 105°C
Contact Finish - Mating
Gold
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
Flash
Contact Finish Thickness - Mating
Flash
| Attribute | Value |
|---|---|
| Mfr | GCT |
| Style | Board to Board |
| Series | BC075 |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Female Socket |
| Contact Shape | Square |
| Mounting Type | Surface Mount, Right Angle |
| Connector Type | Receptacle |
| Fastening Type | Push-Pull |
| Number of Rows | 1 |
| Pitch - Mating | 0.039" (1.00mm) |
| Voltage Rating | 250V |
| Contact Material | Phosphor Bronze |
| Insulation Color | Black |
| Insulation Height | 0.059" (1.50mm) |
| Base Product Number | BC075 |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Number of Positions | 4 |
| Contact Finish - Post | Gold |
| Current Rating (Amps) | 1A per Contact |
| Operating Temperature | -40°C ~ 105°C |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | Flash |
| Contact Finish Thickness - Mating | Flash |
