Step1: Product

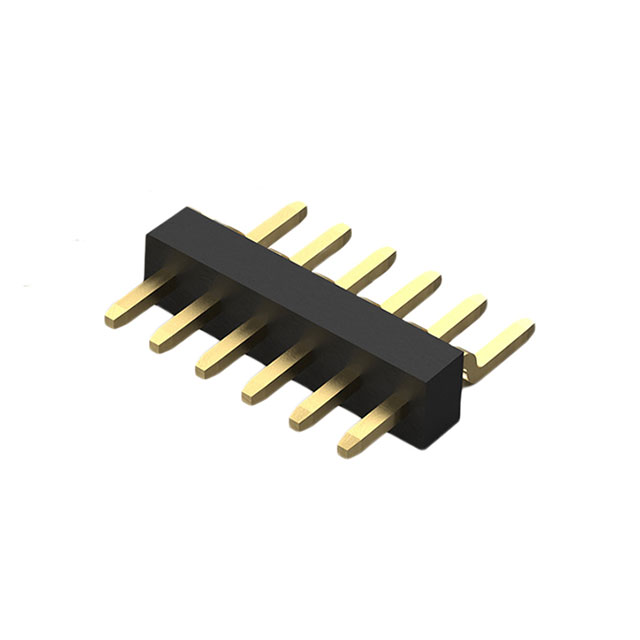

GCT BC034-06-A-V-0150-L-C
Image shown is a representation only
Manufacturer
Manufacturer No
BC034-06-A-V-0150-L-C
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
6POS 1.0MM PITCH HEADER, SIL, SM
Detailed Description
Connector Header Surface Mount, Right Angle 6 position 0.039" (1.00mm)
DataSheet
Mfr
GCT
Style
Board to Board
Series
BC034
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Shrouding
Unshrouded
Part Status
Active
Termination
Solder
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Surface Mount, Right Angle
Connector Type
Header
Fastening Type
Push-Pull
Number of Rows
1
Pitch - Mating
0.039" (1.00mm)
Voltage Rating
250VAC/DC
Contact Material
Phosphor Bronze
Insulation Color
Black
Insulation Height
0.059" (1.50mm)
Base Product Number
BC034
Insulation Material
Liquid Crystal Polymer (LCP)
Number of Positions
6
Contact Finish - Post
Gold
Current Rating (Amps)
1A per Contact
Operating Temperature
-40°C ~ 105°C
Contact Finish - Mating
Gold
Contact Length - Mating
0.059" (1.50mm)
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
Flash
Contact Finish Thickness - Mating
Flash
| Attribute | Value |
|---|---|
| Mfr | GCT |
| Style | Board to Board |
| Series | BC034 |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Shrouding | Unshrouded |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Surface Mount, Right Angle |
| Connector Type | Header |
| Fastening Type | Push-Pull |
| Number of Rows | 1 |
| Pitch - Mating | 0.039" (1.00mm) |
| Voltage Rating | 250VAC/DC |
| Contact Material | Phosphor Bronze |
| Insulation Color | Black |
| Insulation Height | 0.059" (1.50mm) |
| Base Product Number | BC034 |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Number of Positions | 6 |
| Contact Finish - Post | Gold |
| Current Rating (Amps) | 1A per Contact |
| Operating Temperature | -40°C ~ 105°C |
| Contact Finish - Mating | Gold |
| Contact Length - Mating | 0.059" (1.50mm) |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | Flash |
| Contact Finish Thickness - Mating | Flash |
